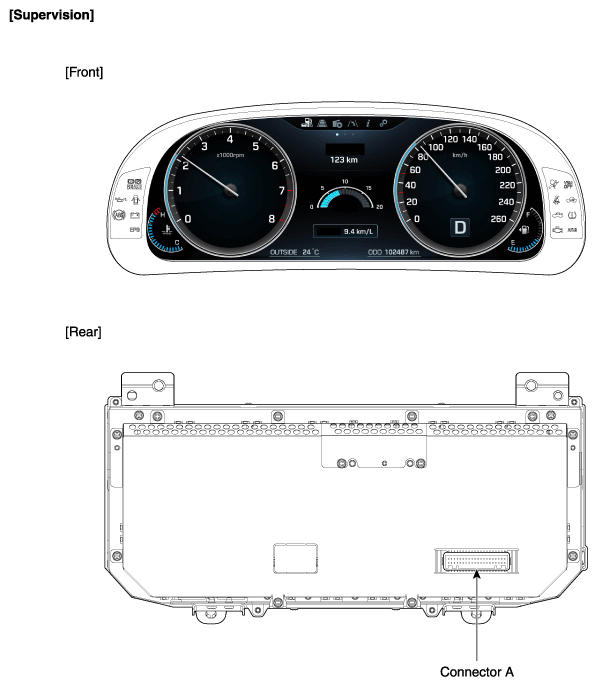

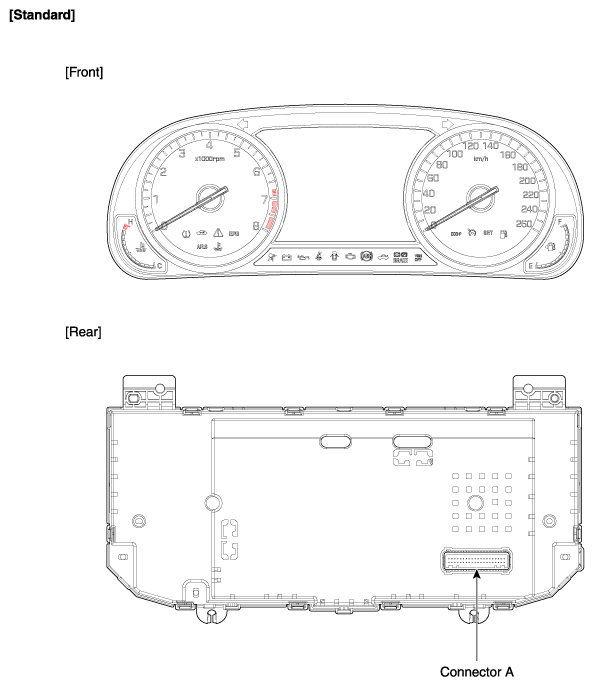

Components and Components Location: Components
CONNECTOR PIN IDENTIFICATION
| No. | Description | No. | Description |
|---|---|---|---|
| 1 | Air bag + | 21 | - |
| 2 | - | 22 | Speaker+ |
| 3 | Rheostat down switch | 23 | Speaker - |
| 4 | Rheostat up switch | 24 | - |
| 5 | - | 25 | Vehicle speed 4P output |
| 6 | Oil pressure | 26 | R Output |
| 7 | Low washer | 27 | P Output |
| 8 | Battery charge | 28 | Detent output |
| 9 | Heated wheel indicator | 29 | - |
| 10 | LED OFF (Input) | 30 | MM_CAN High |
| 11 | - | 31 | MM_CAN Low |
| 12 | Driving mode switch | 32 | C_CAN High |
| 13 | D Output | 33 | C_CAN Low |
| 14 | Fuel | 34 | N Output |
| 15 | S Output | 35 | Illumination Output |
| 16 | Fuel GND | 36 | Power ground |
| 17 | - | 37 | Signal ground |
| 18 | - | 38 | - |
| 19 | IGN2 input | 39 | IGN + |
| 20 | Illumination + | 40 | Battery + |
