Repair procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front pillar trim.

    (Refer to "FRONT PILLAR TRIM ")

  2. Remove the cowl side trim.

    (Refer to "COWL SIDE TRIM ")

  3. Remove the front LCD monitor.

    (Refer to "FRONT LCD MONITOR ")

  4. Remove the AVN head unit.

    (Refer to "AVN (AUDIO VIDEO NAVIGATION) HEAD UNIT ")

  5. Remove the instrument cluster.

    (Refer to "INSTRUMENT CLUSTER ")

  6. Remove the crash pad center panel.

    (Refer to "CRASH PAD CENTER PANEL ")

  7. Remove the steering wheel.

    (Refer to "HEATED STEERING WHEEL ")

  8. Remove the multifunction switch assembly.

    (Refer to "MULTIFUNCTION SWITCH ")

  9. Disconnect the head up display (HUD) unit connector (A).
    Fig 1: Head Up Display (HUD) Unit Connector
    G10386630Courtesy of HYUNDAI MOTOR AMERICA
  10. After loosening the mounting screws, then remove the crash pad upper panel [LH] (A).
    11. Fig 2: Crash Pad Upper Panel (LH)
    G10386631Courtesy of HYUNDAI MOTOR AMERICA
  11. Disconnect the crash pad upper panel switch connector (A).
    Fig 3: Crash Pad Upper Panel Switch Connector
    G10386632Courtesy of HYUNDAI MOTOR AMERICA
  12. After loosening the mounting screws, then remove the cubis unit (A).
    Fig 4: Cubis Unit
    G10386633Courtesy of HYUNDAI MOTOR AMERICA
  13. Disconnect the cubis unit connectors (A).
    Fig 5: Cubis Unit Connectors
    G10386634Courtesy of HYUNDAI MOTOR AMERICA
  14. Disconnect the photo sensor connector (A).
    Fig 6: Photo Sensor Connector
    G10386635Courtesy of HYUNDAI MOTOR AMERICA
  15. Disconnect the center speaker connector (A).
    Fig 7: Center Speaker Connector
    G10386636Courtesy of HYUNDAI MOTOR AMERICA
  16. Loosen the mounting bolts.
  17. Disconnect the passenger's airbag connectors (A).
    Fig 8: Passenger Airbag Connectors
    G10386637Courtesy of HYUNDAI MOTOR AMERICA
  18. After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).

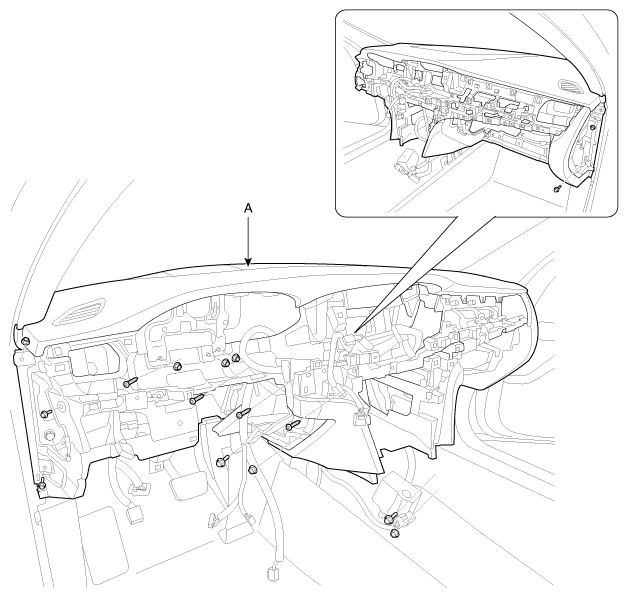

    19. Fig 9: Main Crash Pad Assembly Mounting Bolts And Nuts
    G10386638Courtesy of HYUNDAI MOTOR AMERICA
  19. Install in the reverse order of removal.
    IMPORTANT:
    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
