Repair procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
Put on gloves to protect your hands.

Remove the main crash pad assembly.
(Refer to "MAIN CRASH PAD ASSEMBLY ")
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")
Disconnect the blower unit connectors.
Disconnect the multi box connectors (A).
[Driver's]

Fig 1: Driver Multi Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA

[Passenger's]

Fig 2: Passenger Multi Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the passenger compartment junction box connectors.

Fig 3: Passenger Compartment Junction Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the airbag control module (SRSCM) connectors (A).

Fig 4: Airbag Control Module (SRSCM) Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A) and the mounting clips in the front pillar.
[Driver's]

Fig 5: Driver Front Pillar Connectors
Courtesy of HYUNDAI MOTOR AMERICA

[Passenger's]

Fig 6: Passenger Front Pillar Connectors
Courtesy of HYUNDAI MOTOR AMERICA

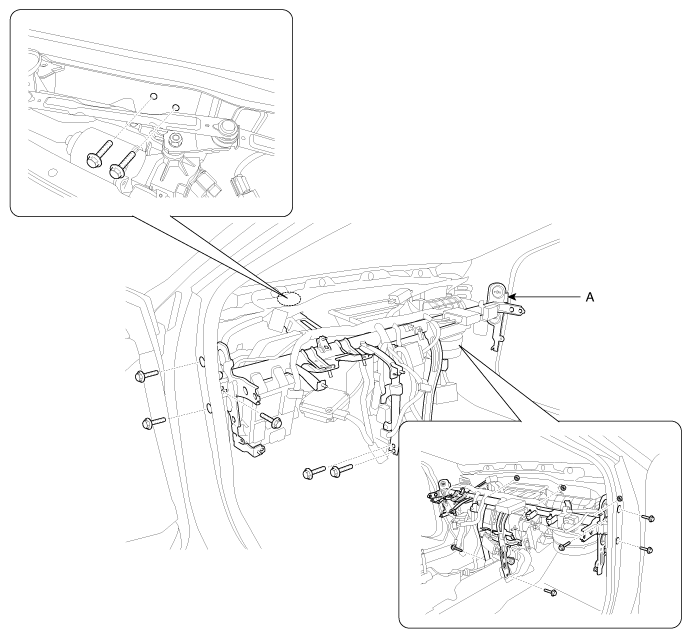

After loosening the mounting bolts and nuts, then remove the cowl cross bar assembly (A).

Fig 7: Cowl Cross Bar Assembly Mounting Bolts And Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
