Circuit Diagram

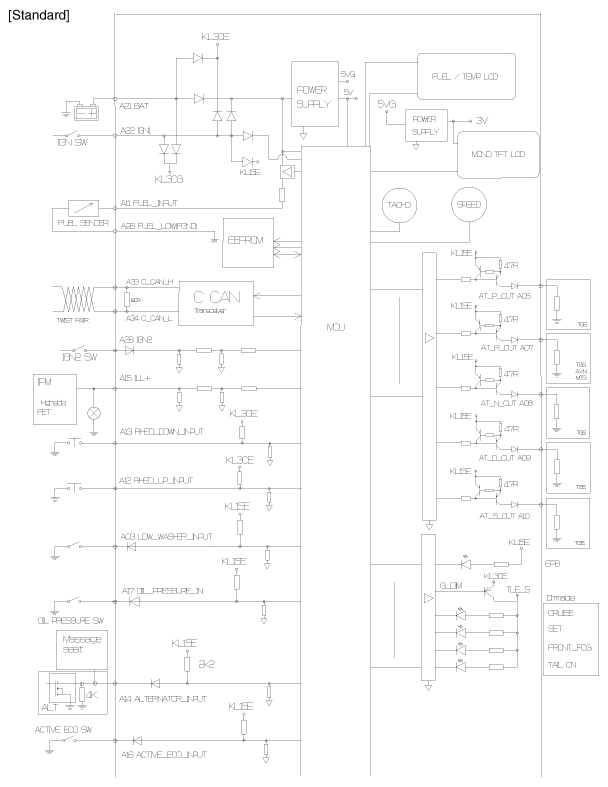

Fig 1: Instrument Cluster Components - Circuit Diagram (1 Of 6)
G10368997Courtesy of HYUNDAI MOTOR AMERICA

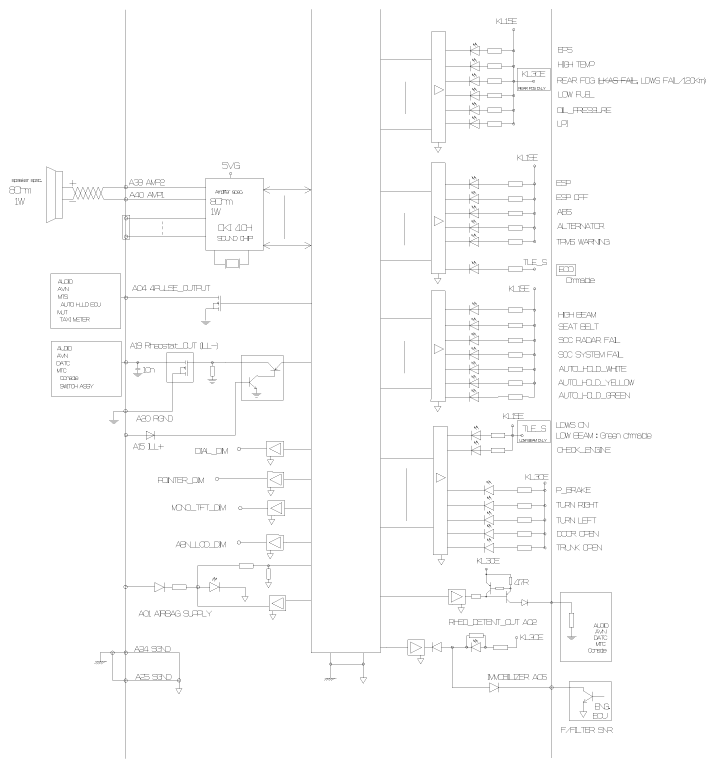

Fig 2: Instrument Cluster Components - Circuit Diagram (2 Of 6)
G10368998Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Instrument Cluster Components - Circuit Diagram (3 Of 6)
G10368999Courtesy of HYUNDAI MOTOR AMERICA

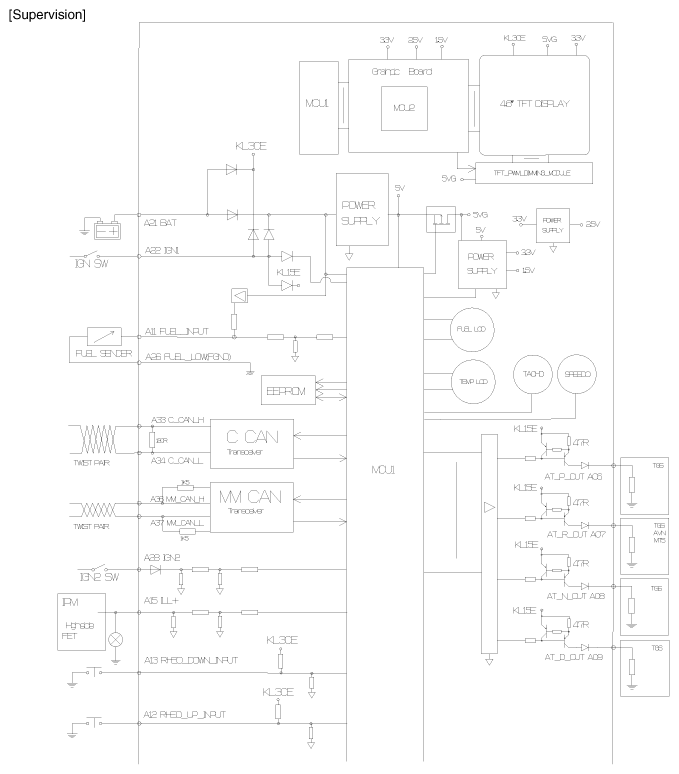

Fig 4: Instrument Cluster Components - Circuit Diagram (4 Of 6)
G10369000Courtesy of HYUNDAI MOTOR AMERICA

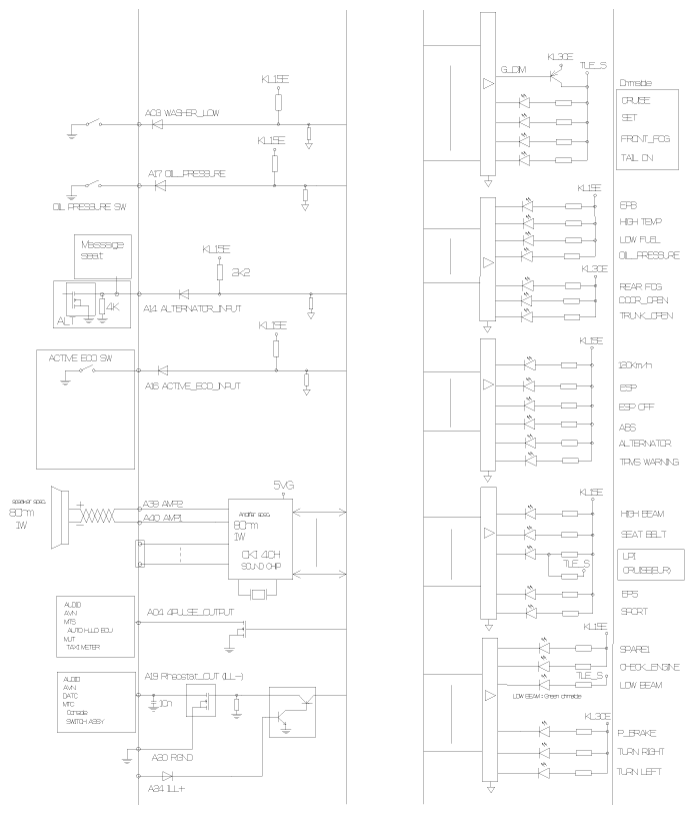

Fig 5: Instrument Cluster Components - Circuit Diagram (5 Of 6)
G10369001Courtesy of HYUNDAI MOTOR AMERICA

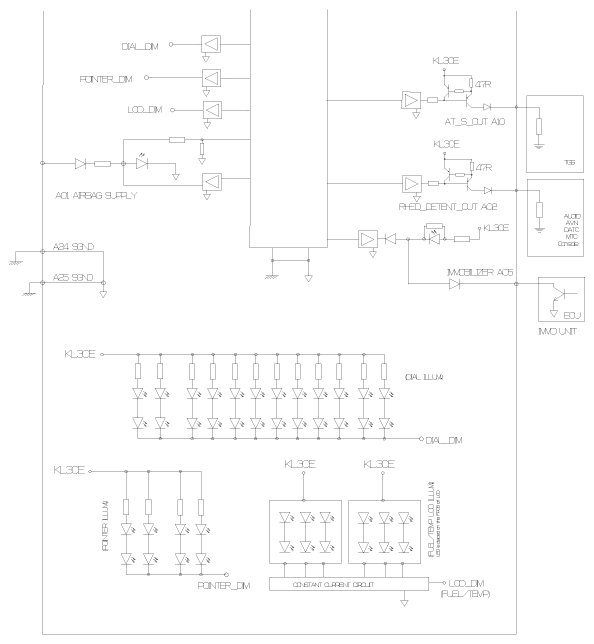

Fig 6: Instrument Cluster Components - Circuit Diagram (6 Of 6)
G10369002Courtesy of HYUNDAI MOTOR AMERICA
