Components And Components Location: Components

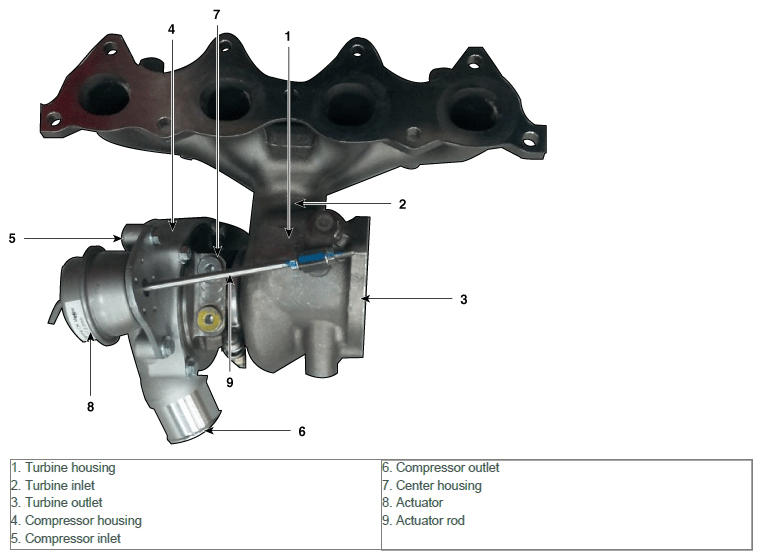

Fig 1: Turbo Charger Replacement Components

G10604302

Courtesy of HYUNDAI MOTOR AMERICA
