Home >> Hyundai >> 2015 >> Veloster Turbo, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Intake & Exhaust System - 1.6L T-GDI >> Intake Manifold >> Components And Components Location >> Components

Components And Components Location: Components

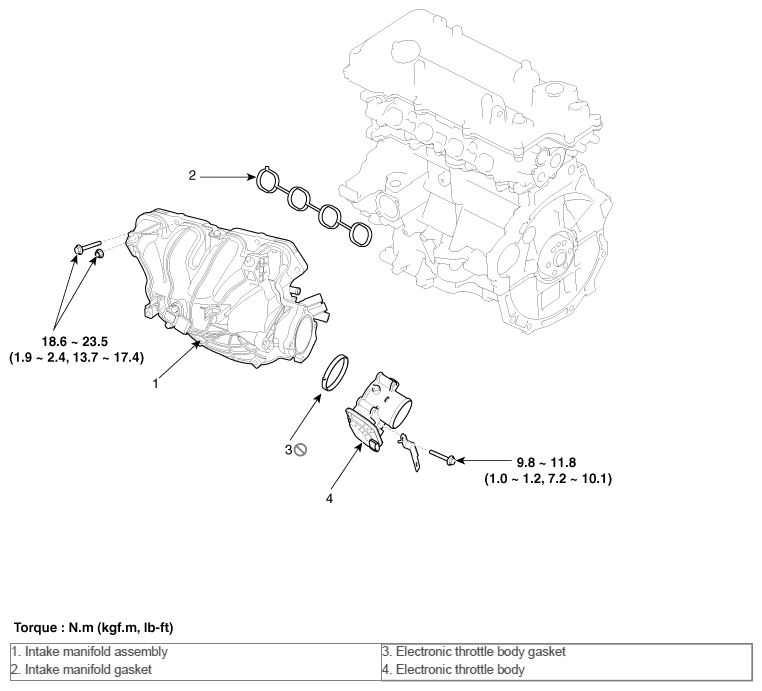

Fig 1: Intake Manifold Replacement Components With Torque Specification

G10604274

Courtesy of HYUNDAI MOTOR AMERICA
