Luggage Side Trim Replacement

CAUTION:
  • Put on gloves to protect your hands.
  • Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the following parts first:
    1. Rear Seat Assembly

      (Refer to: BD procedure - "REAR SEAT ").

    2. Front Door Scuff Trim [LH]
    3. Center Pillar Lower Trim [LH]
    4. Rear Door Scuff Trim [RH]
    5. Rear Transverse Trim
  2. After loosening the Mounting Screws, remove the Luggage Side Trim.
  3. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.

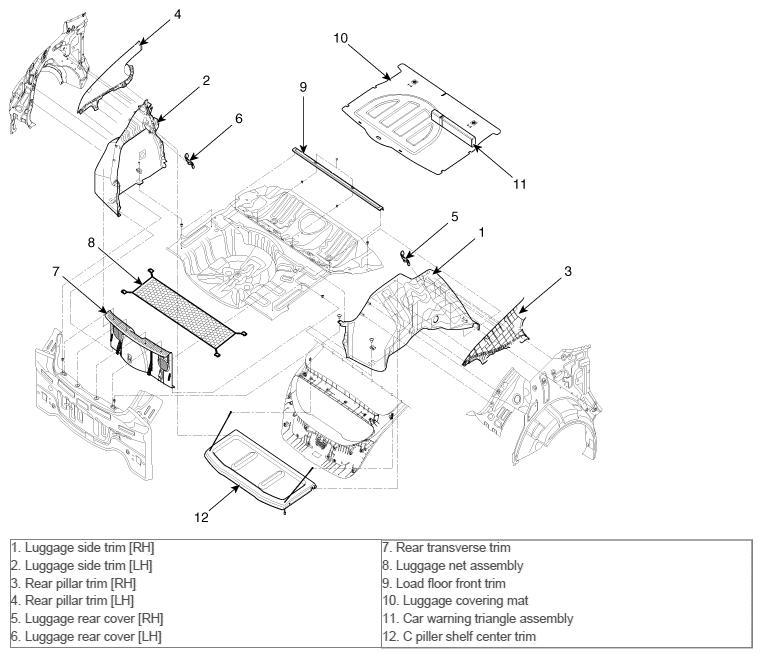

    Fig 1: Luggage Side Trim Replacement Components
    G10605488Courtesy of HYUNDAI MOTOR AMERICA
