SRS Control Module Connector End View (F15)

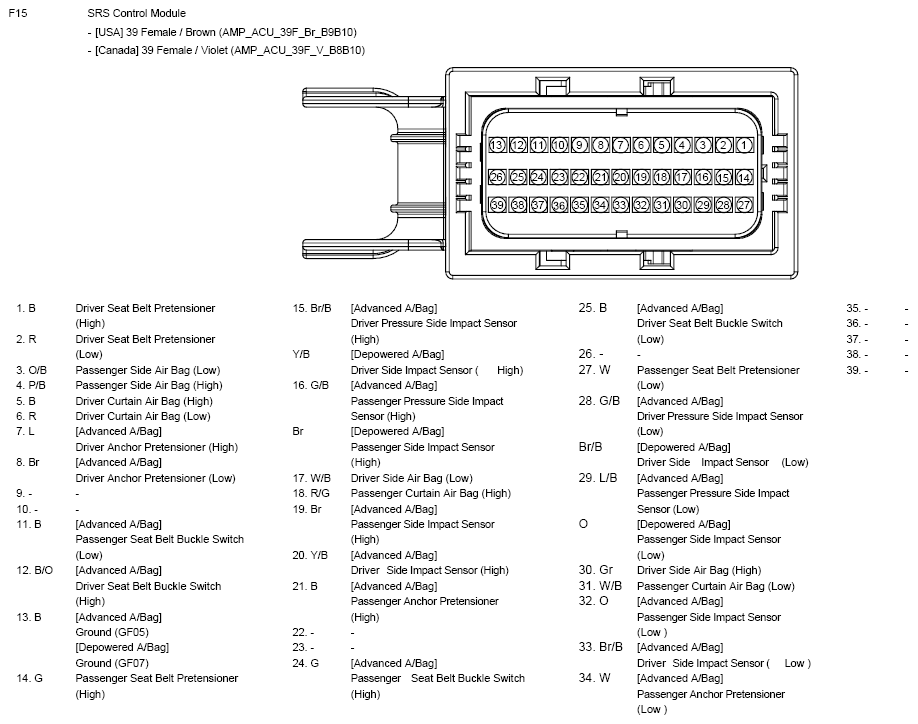

Fig 1: SRS Control Module Connector End View (F15)

G10778017

Courtesy of HYUNDAI MOTOR AMERICA
