AC Inverter Module Connector End View (F47)

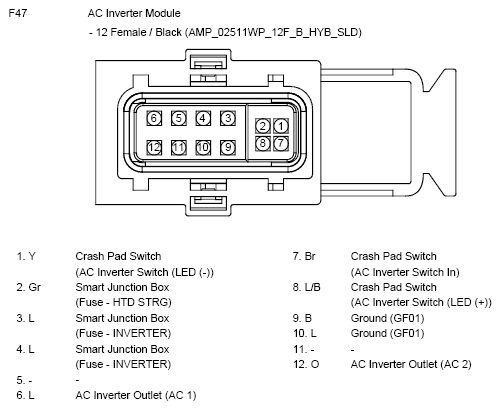

Fig 1: AC Inverter Module Connector End View (F47)

G10778035

Courtesy of HYUNDAI MOTOR AMERICA
