Home >> Hyundai >> 2015 >> Sonata Eco >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Suspension System (Except HEV) >> Rear Suspension System >> Components and Components Location >> Components

Components and Components Location: Components

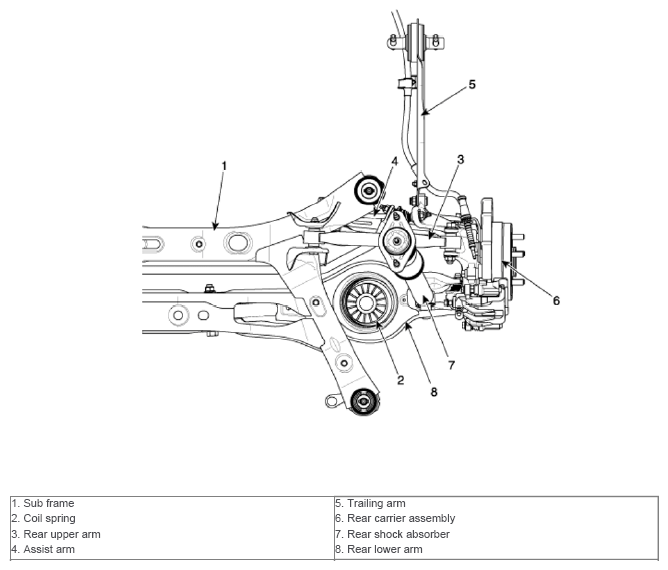

Fig 1: Rear Suspension System Related Components Location

G10566965

Courtesy of HYUNDAI MOTOR AMERICA
