Body sensor Reset

Ignition "OFF", connect GDS.
Ignition "ON" & Engine "OFF", select "Vehicle Software Management" mode and select "Body Sensor Reset".
And then press "ENTER"

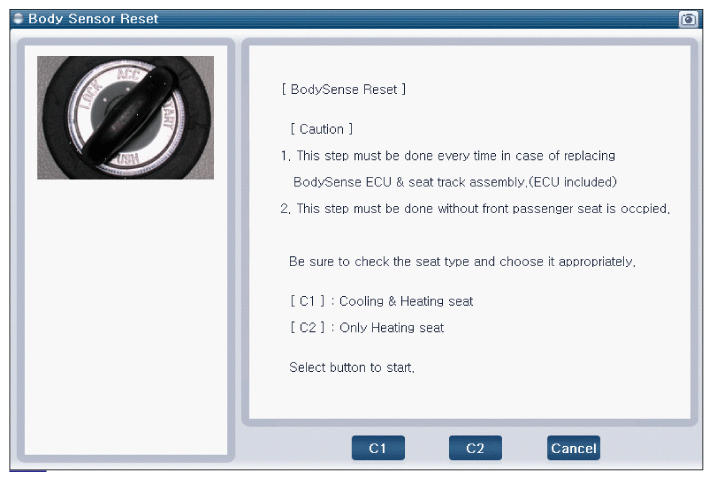

Fig 1: Screen Display - Body Sensor Reset (1 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

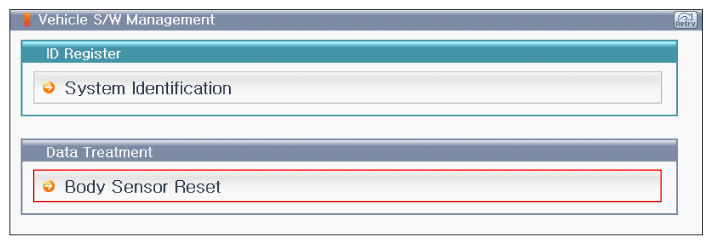

Fig 2: Screen Display - Body Sensor Reset (2 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

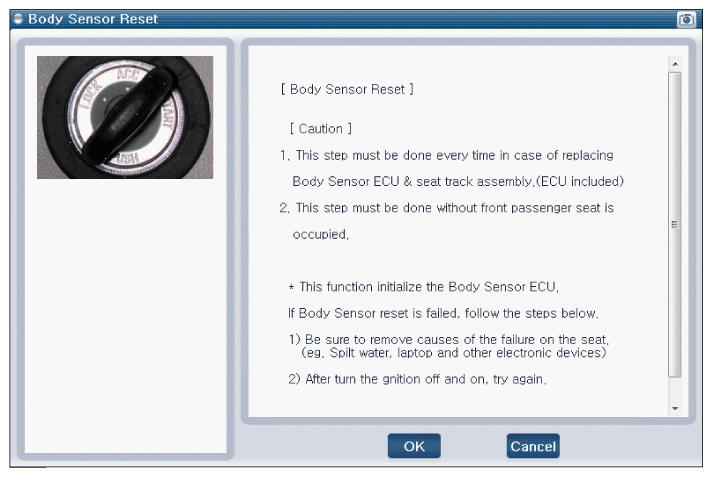

Fig 3: Screen Display - Body Sensor Reset (3 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

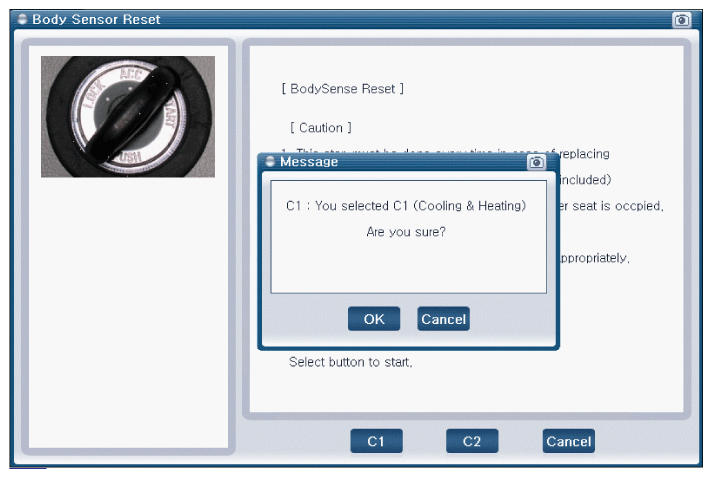

Fig 4: Screen Display - Body Sensor Reset (4 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

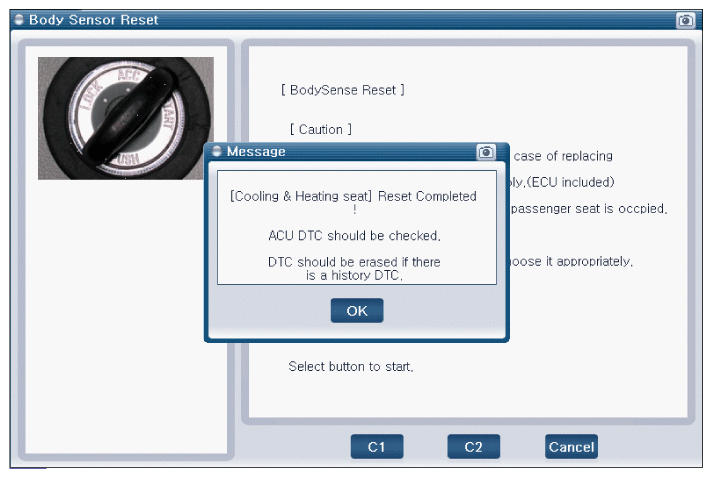

Fig 5: Screen Display - Body Sensor Reset (5 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA
