Monitor GDS Data
- Ignition "OFF", connect GDS.
- Ignition "ON" & Engine "OFF", select "Current Data" mode.

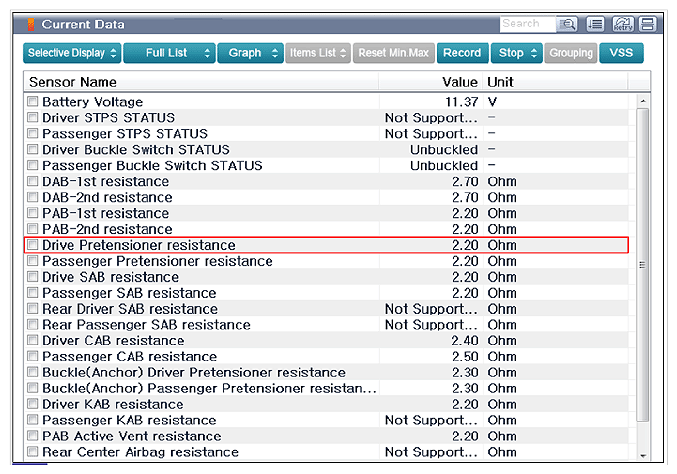

- Monitor the "Pretensioner Front-Driver Resistance" parameter on the GDS.
Courtesy of HYUNDAI MOTOR AMERICA
Specification: Resistance of Pretensioner Front-Driver is between 1.0Ω and 6.9Ω
Reference: In a case of an open in the Pretensioner Front-Driver circuit: FAIL
In a case of a short to battery in the Pretensioner Front-Driver circuit: FAIL
In a case of a short to ground in the Pretensioner front-Driver circuit: FAIL
- Is parameter displayed within specifications?
YES
- Displaying nothing (no DTC) or DTC with label "H"(historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
Thoroughly check shorting Bar/Shorting bar release pin and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "W/HARNESS INSPECTION " procedure.
- Displaying nothing (no DTC) or DTC with label "H"(historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
