Body sensor Reset

Ignition "OFF", connect GDS.
Ignition "ON" & Engine "OFF", select "Vehicle Software Management" mode and select "Body sensor Reset".
And then press "ENTER"

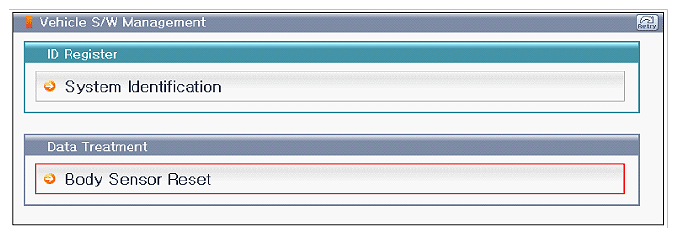

Fig 1: Screen Display - Body Sensor Reset
Courtesy of HYUNDAI MOTOR AMERICA

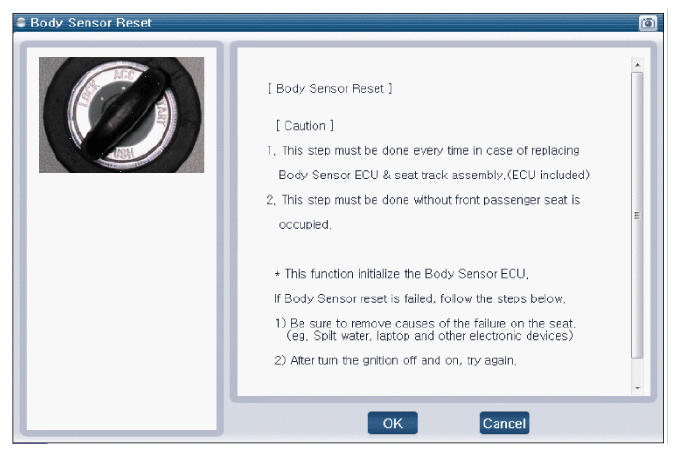

Fig 2: Screen Display - Reset Caution
Courtesy of HYUNDAI MOTOR AMERICA

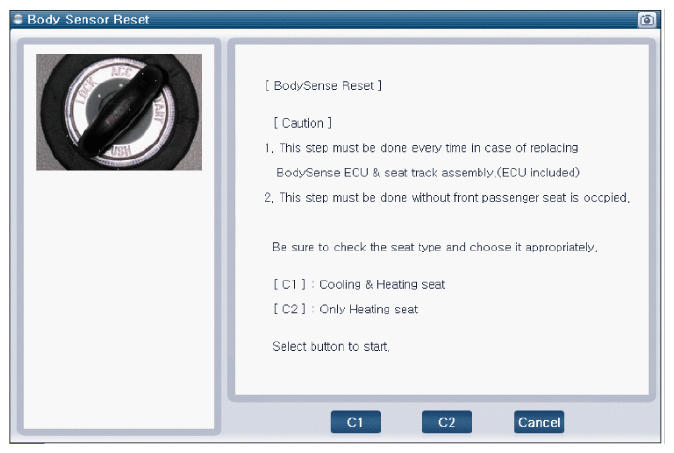

Fig 3: Screen Display - Seat Type Select
Courtesy of HYUNDAI MOTOR AMERICA

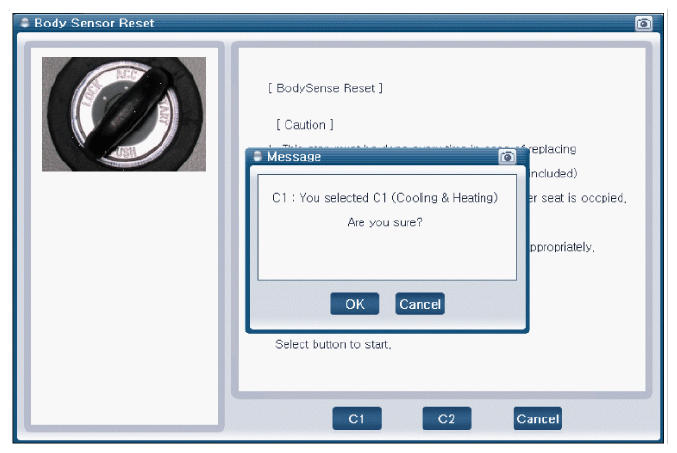

Fig 4: Screen Display - Seat Type Check
Courtesy of HYUNDAI MOTOR AMERICA

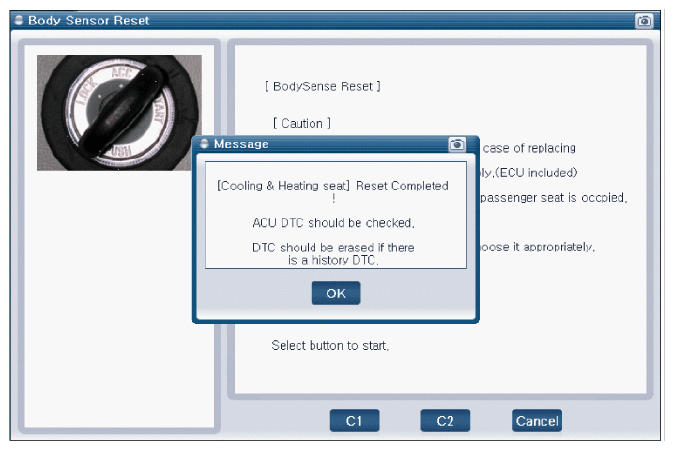

Fig 5: Screen Display - Reset Completed
Courtesy of HYUNDAI MOTOR AMERICA
