Component Location

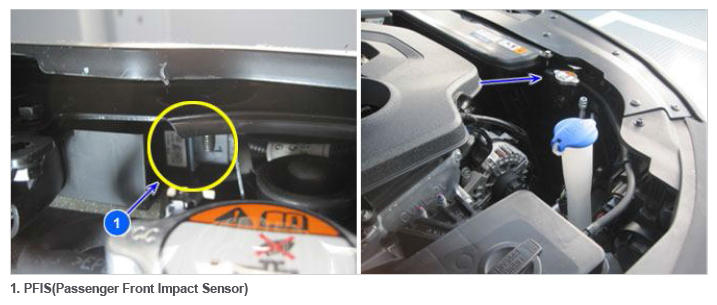

Fig 1: Identifying PFIS (Passenger Front Impact Sensor)
G10569170Courtesy of HYUNDAI MOTOR AMERICA
