Airbag (Event #1) System Diagnosis (Except HEV)
>>
DTC B1328-00: FIS (Front Impact Sensor)-Driver Defect
>>
Component Location
Component Location

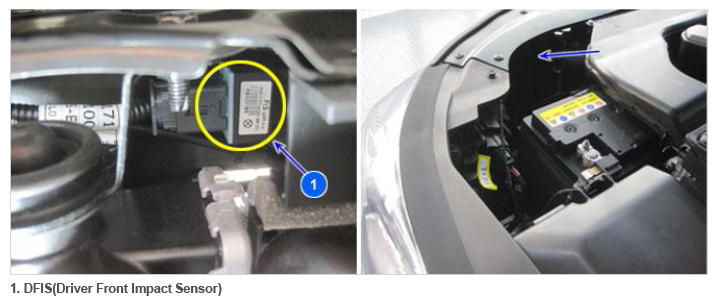

Fig 1: Identifying DFIS (Driver Front Impact Sensor)
Courtesy of HYUNDAI MOTOR AMERICA
