Main harness Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

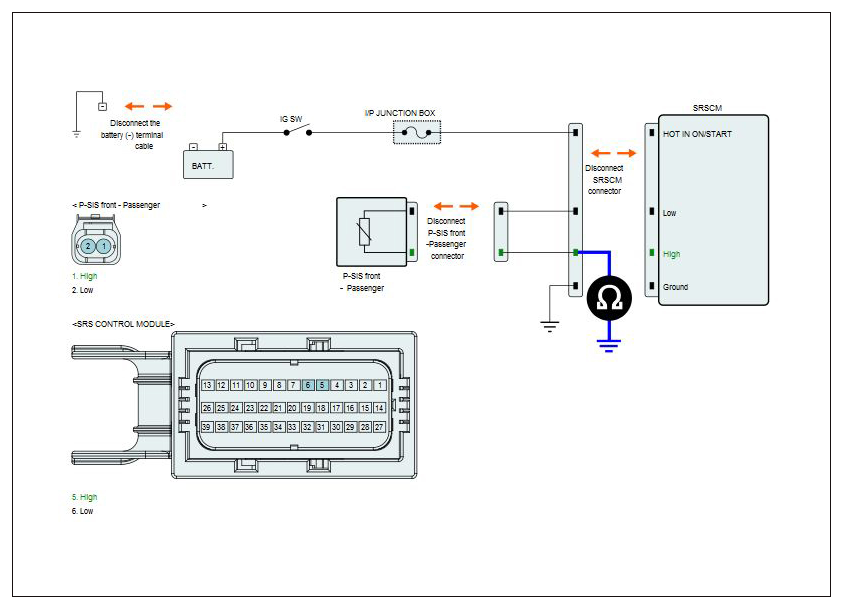

- Ignition "OFF".
- Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
- Disconnect Pressure-Side Impact connector and SRSCM main harness connector.
- Measure resistance between terminal "Low" or "High" of the Pressure-Side Impact harness connector and chassis ground.
Specification: ∞
- Is the measured resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Substitute the SRSCM main harness and check for proper operation.
If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
