DTC B1739: P-SIS Front-Driver Defect
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

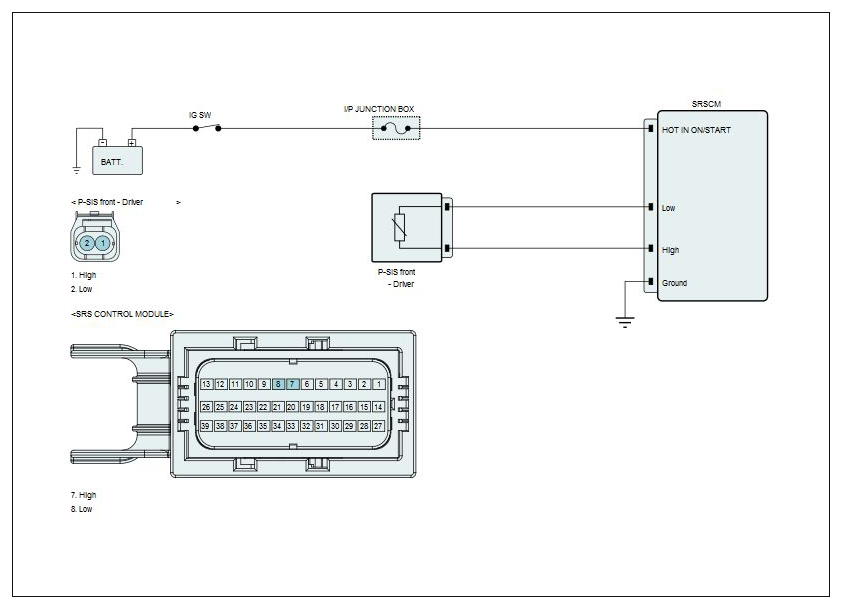

Fig 1: Front Pressure Side Impact Sensor Circuit Diagram (Driver)
Courtesy of HYUNDAI MOTOR AMERICA
