Squib Circuit Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF".
  2. Disconnect (-) terminal cable from battery and wait for 1 minutes or more.
  3. Disconnect Anchor Pretensioner front-Passenger and connect the dummy and dummy adapter to main harness connector.
    NOTE: If dummy and dummy adaptor are not able to be prepared, use a known-good Anchor Pretensioner front-Passenger.
  4. Connect (-) terminal cable to battery and Ignition "ON" & Engine "OFF" and wait for 30 seconds or more.
  5. Connect scantool to Data Link Connector (DLC) and clear DTC with scantool and diagnose again.

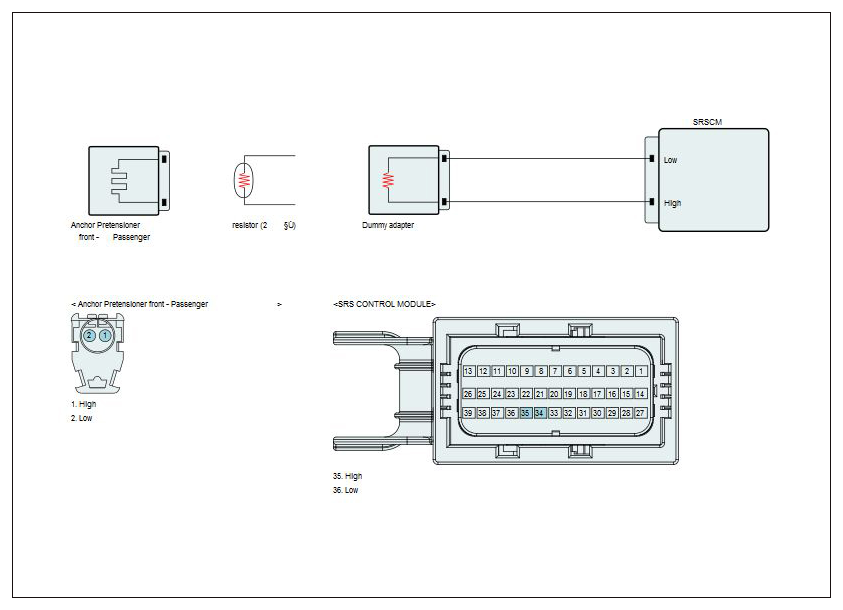

    Fig 1: Front Anchor Pretensioner Circuit Diagram (Passenger)
    G10601331Courtesy of HYUNDAI MOTOR AMERICA
  6. Is DTC present problem?

    YES

    NO

    • Substitute a known-good Anchor Pretensioner front-Passenger assembly, and check for proper operation.

      If the problem is corrected, replace Anchor Pretensioner front-Passenger and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
