Monitor Scantool Data
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF", connect scantool.
- Ignition "ON" & Engine "OFF", select "Current Data" mode.

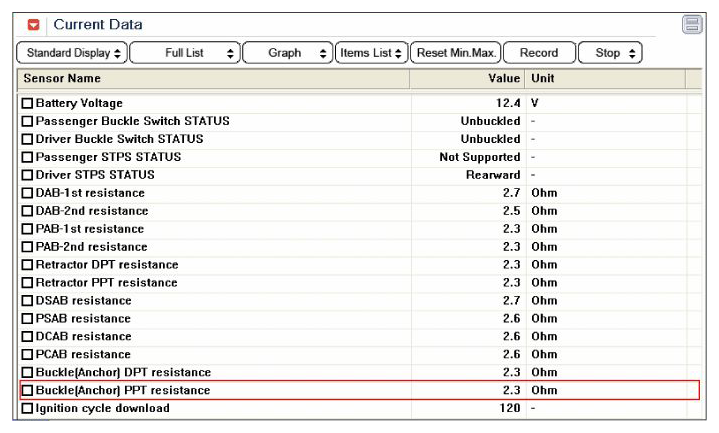

- Monitor the "Anchor Pretensioner front-Passenger resistance" parameter on the Scantool.
Specification: 1.1Ω< Resistance of Anchor Pretensioner front-Passenger < 6.7Ω
Reference: In a case of an open in the Anchor Pretensioner front-Passenger circuit: FAIL
In a case of a short to battery in the Anchor Pretensioner front-Passenger circuit: FAIL
In a case of a short to ground in the Anchor Pretensioner front-Passenger circuit: FAIL
- Is parameter displayed within specifications?
YES
- Displaying nothing (no DTC) or DTC with label "H"(historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
Thoroughly check shorting bar/shorting bar release pin and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "W/HARNESS INSPECTION " procedure.
- Displaying nothing (no DTC) or DTC with label "H"(historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
