Section 98 (Airbag System Diagnosis (HEV))
>>
DTC B1684: ACU Configuration Is Different
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

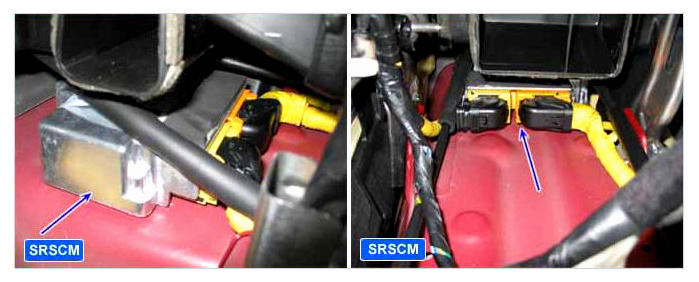

Fig 1: Identifying Supplemental Restraints System Control Module
Courtesy of HYUNDAI MOTOR AMERICA
