Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
  3. Monitor diagnostic trouble code and present of trouble code.
  4. Using a scan tool, clear the DTC.

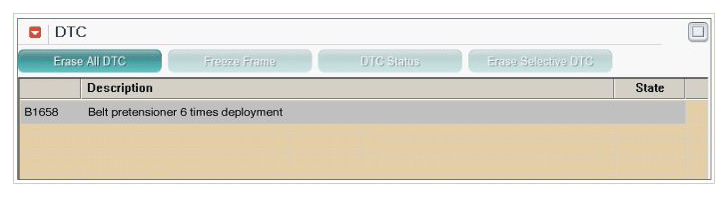

    Fig 1: Scantool Display - Belt Pretensioner 6 Times Deployment
    G10601258Courtesy of HYUNDAI MOTOR AMERICA
  5. Is DTC present problem?

    YES

    • DTC caused by 6th deployment of BPT. Substitute with a SRSCM and check for proper operation.

      If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
