Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF", connect scantool.
Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
Monitor diagnostic trouble code and present of trouble code.
Using a scan tool, clear the DTC.

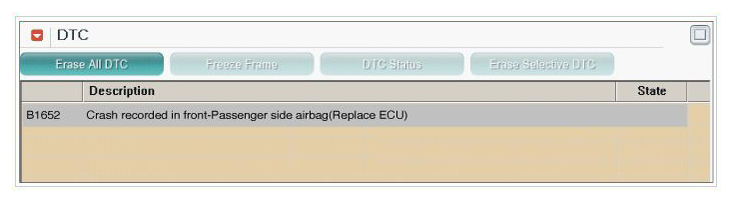

Fig 1: Scantool Display - Crash Recorded In Front-Passenger Side Airbag (Replace ECU)
Courtesy of HYUNDAI MOTOR AMERICA
Is DTC present problem?
YES
- DTC caused by deployment of front passenger SAB and passenger CAB. Substitute with a SRSCM and check for proper operation.
  If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
