Monitor Scantool Data
WARNING: This page is about a different variant/trim than selected.
- Ignition "Off", Connect Scantool.

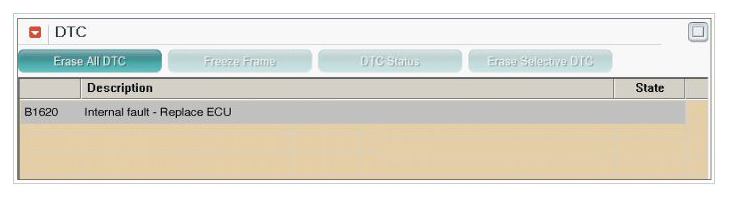

- Ignition "On" & Engine "Off", Select "Diagnostic Trouble Codes (DTC)" Mode.
- Monitor Diagnostic Trouble Code And Present Of Trouble Code.
- Using A Scan Tool, Clear The DTC.
- Is DTC Present Problem?
Yes
- Internal Fault Of SRSCM. Substitute With A SRSCM And Check For Proper Operation.
If The Problem Is Corrected, Replace SRSCM And Then Go To "verification Of Vehicle Repair " Procedure.
- Internal Fault Of SRSCM. Substitute With A SRSCM And Check For Proper Operation.
