Main harness Circuit Inspection(2)

1. Ignition "OFF".
2. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
3. Disconnect Seatbelt Buckle Switch connector and SRSCM main harness connector.
4. Connect the battery (-) terminal cable to the battery and Ignition "ON" & Engine "OFF".
5. Measure voltage between terminal "High" of the Seatbelt Buckle Switch harness connector and chassis ground.

   Specification:  0V

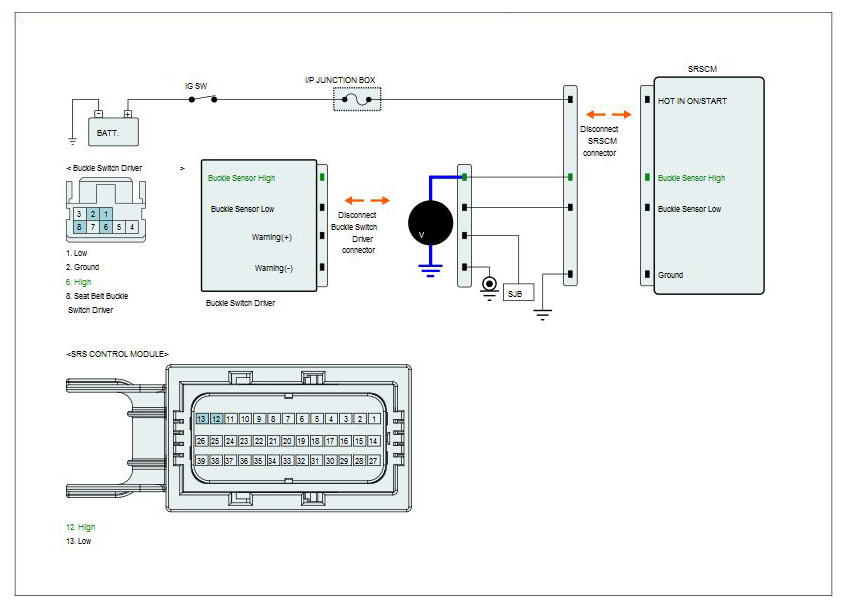

   Fig 1: Measuring Voltage Between Terminal High Of Seatbelt Buckle Switch Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
6. Is the measured resistance within specifications?

   YES

   • Go to "COMPONENT INSPECTION " procedure.

   NO

   • Substitute the SRSCM main harness and check for proper operation.

If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
