Main harness Circuit Inspection(1)

1. Ignition "OFF".
2. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
3. Disconnect Seatbelt Buckle Switch connector and SRSCM main harness connector.
4. Measure resistance between of the Buckle Switch Driver wiring connector and SRSCM harness connector.

   Specification:  approx. 1 Ω below

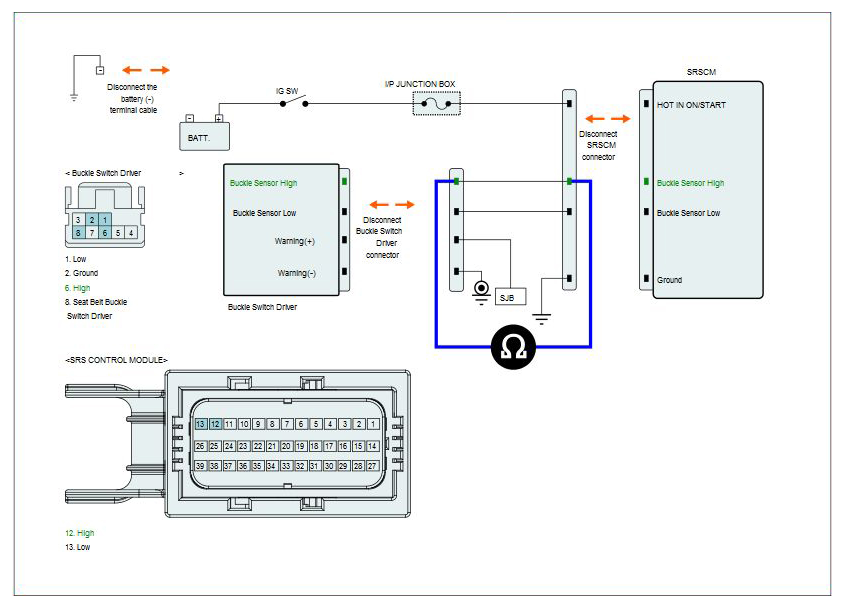

   Fig 1: Measuring Resistance Between Of Buckle Switch Driver Wiring Connector And SRSCM Harness Connector

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the measured resistance within specifications?

   YES

   • Go to "MAIN HARNESS CIRCUIT INSPECTION " procedure.

   NO

   • Substitute the SRSCM main harness and check for proper operation.

If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
