Section 98 (Airbag System Diagnosis (HEV))
>>
DTC B1477: Inflatable Curtain Airbag Front-Passenger Resistance Too High
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

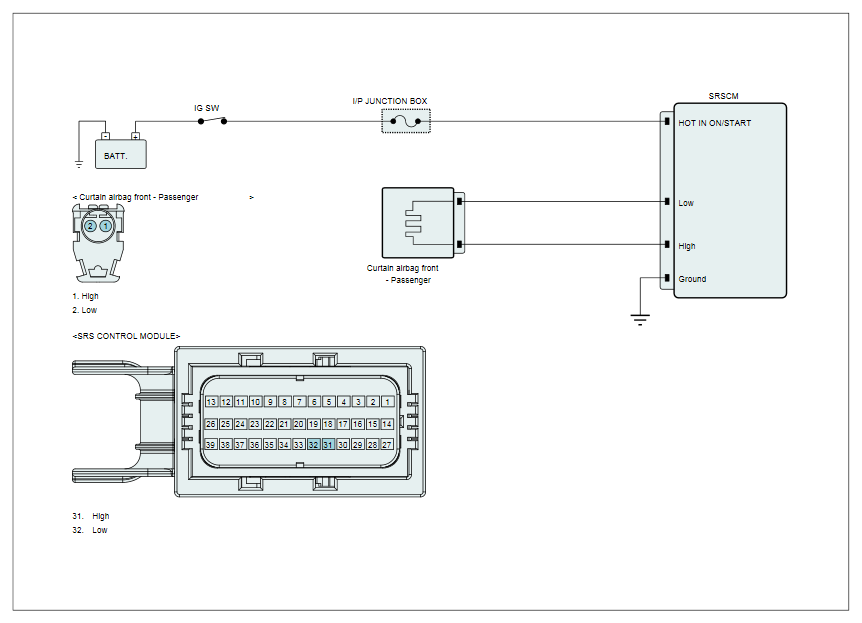

Fig 1: Front Curtain Airbag Circuit Diagram (Passenger)
Courtesy of HYUNDAI MOTOR AMERICA
