Section 98 (Airbag System Diagnosis (HEV))
>>
DTC B1395: External Device Cross-Couplings
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

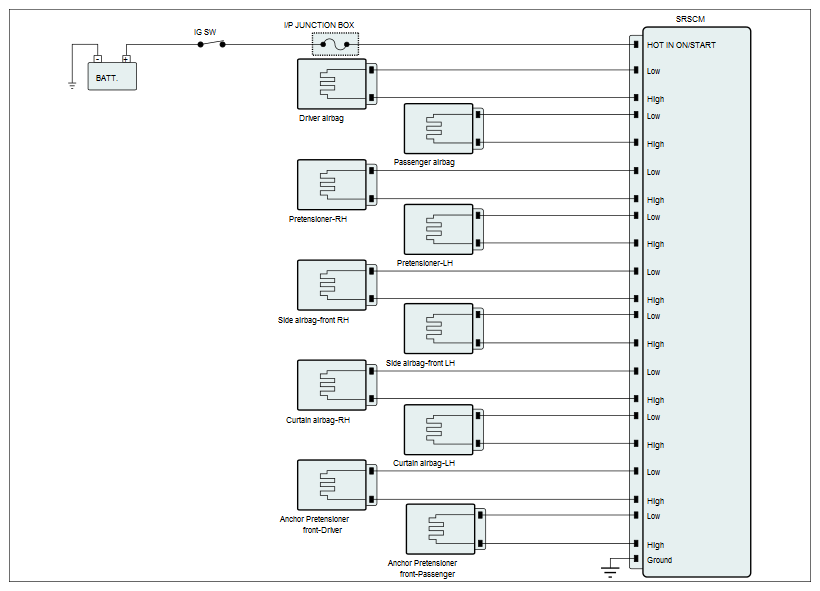

Fig 1: Supplemental Restraints System Control Module Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
