Section 98 (Airbag System Diagnosis (HEV))
>>
DTC B1389: STPS (Seat Track Position Sensor)-Driver Defect
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

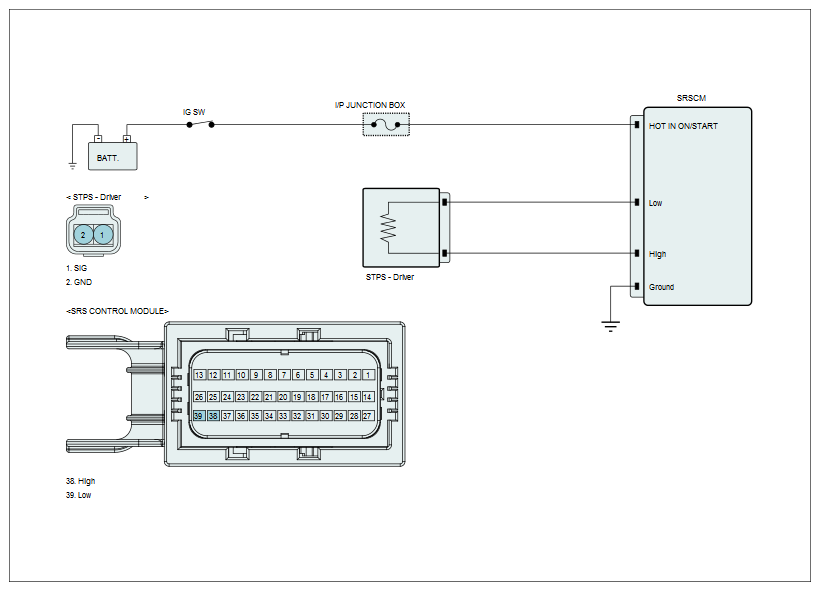

Fig 1: Seat Track Position Sensor Circuit Diagram (Driver)
Courtesy of HYUNDAI MOTOR AMERICA
