Section 98 (Airbag System Diagnosis (HEV))
>>
DTC B1378: Side Airbag Front-Driver Resistance Too High
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

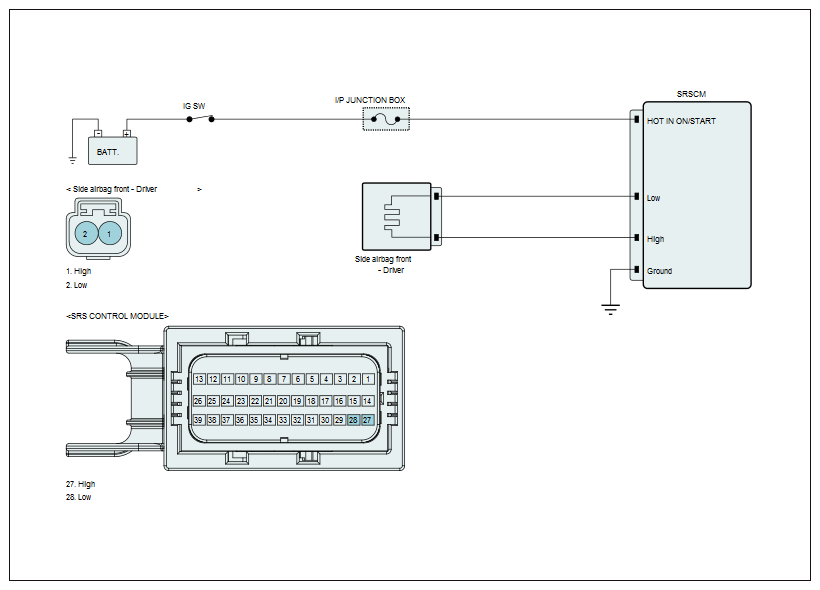

Fig 1: Side Airbag Circuit Diagram (Front Driver)
Courtesy of HYUNDAI MOTOR AMERICA
