Section 98 (Airbag System Diagnosis (HEV))
>>
DTC B1370: Pretensioner Front-Passenger Resistance Circuit Short To Battery
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

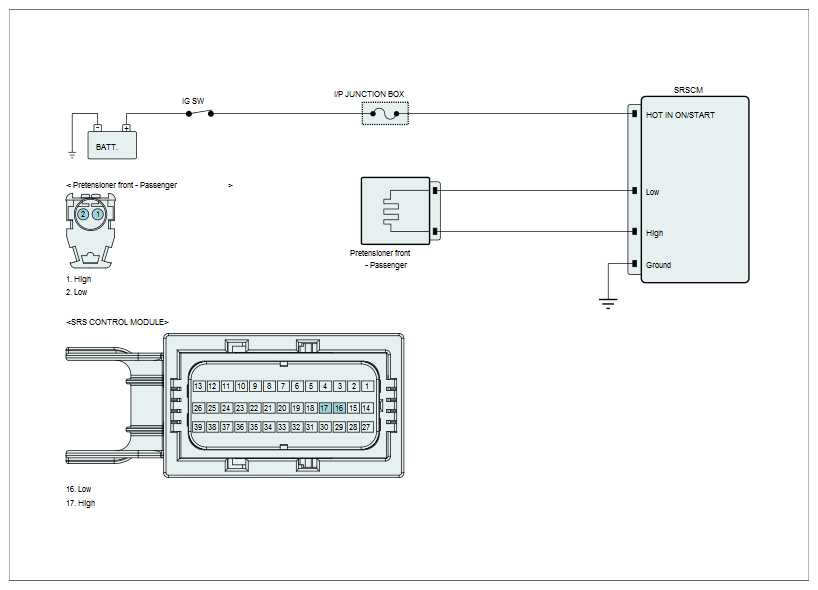

Fig 1: Seat Belt Pretensioner Circuit Diagram (Front Passenger)
Courtesy of HYUNDAI MOTOR AMERICA
