Section 98 (Airbag System Diagnosis (HEV))
>>
DTC B1332: FIS (Front Impact Sensor)-Passenger Short To Battery
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

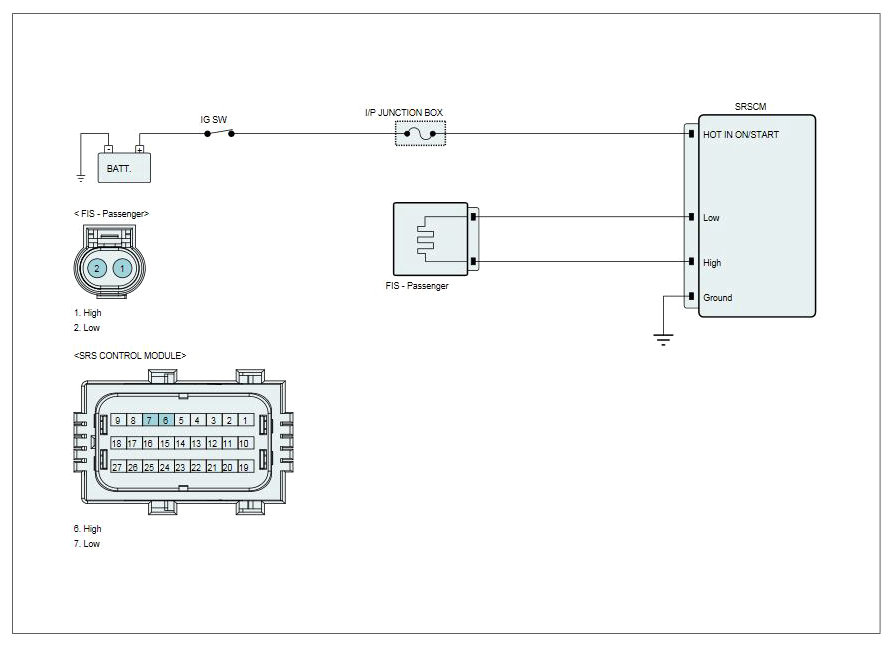

Fig 1: Front Impact Sensor Circuit Diagram - Passenger
Courtesy of HYUNDAI MOTOR AMERICA
