Main harness Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF".
- Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
- Disconnect DFIS connector and SRSCM main harness connector.
- Connect the battery (-) terminal cable to the battery and Ignition "ON" & Engine "OFF".

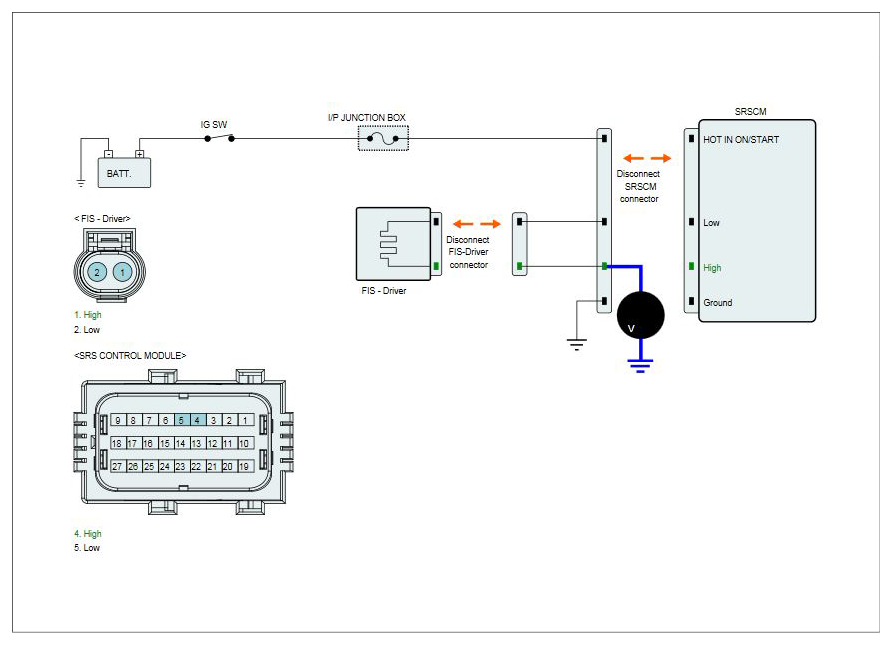

- Measure voltage between terminal "FIS-Driver (+)" or "FIS-Driver (-)" of the DFIS harness connector and chassis ground.
Specification: 0V
- Is the measured Voltage within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Substitute the SRSCM main harness and check for proper operation.
If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
