WCS Reset

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF", connect scantool.
Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
You will see comments and current weight measured.
Make sure the measure weight is not caused by occupant, tools or interference.
Press "ENTER"

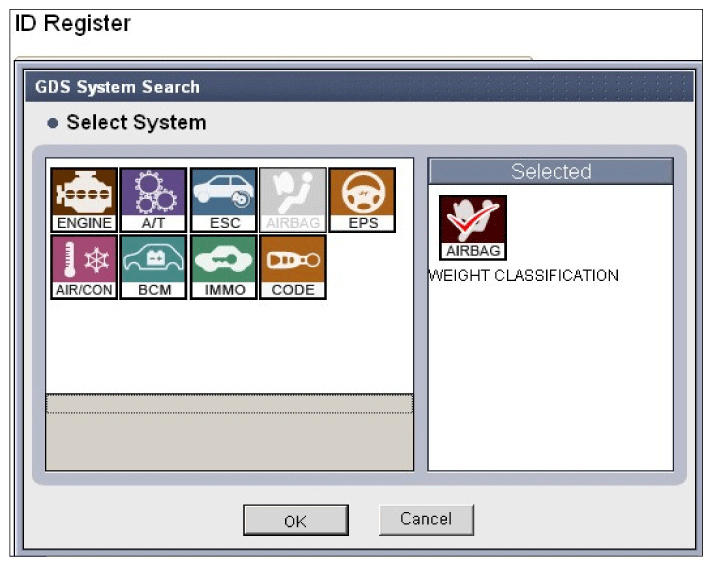

Fig 1: Scantool Display - Select System
Courtesy of HYUNDAI MOTOR AMERICA

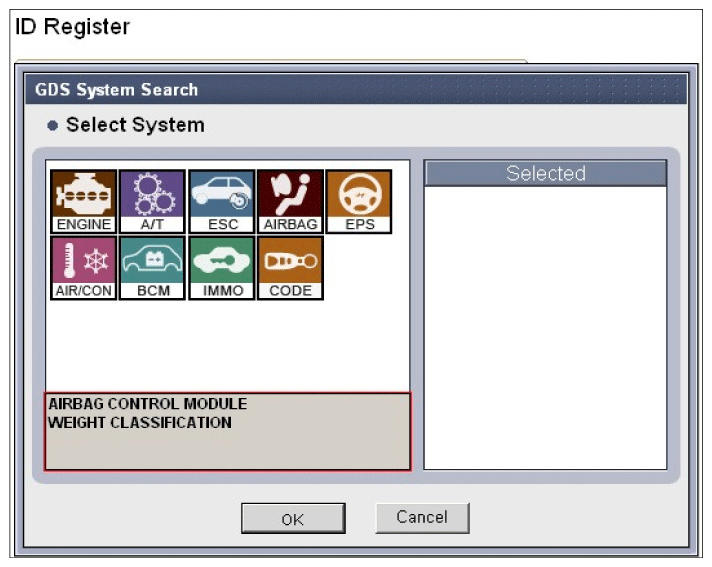

Fig 2: Scantool Display - Weight Classification System Select
Courtesy of HYUNDAI MOTOR AMERICA

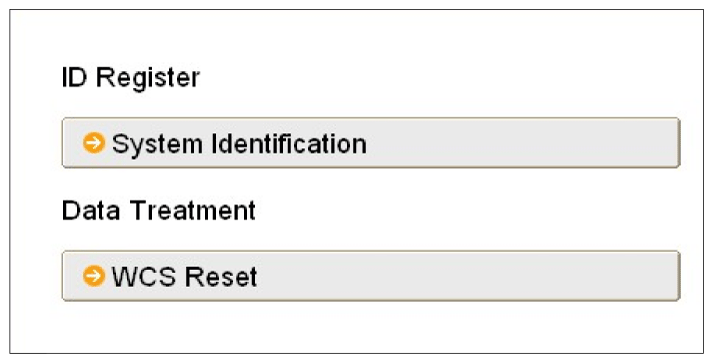

Fig 3: Scantool Display - Weight Classification System Reset
Courtesy of HYUNDAI MOTOR AMERICA

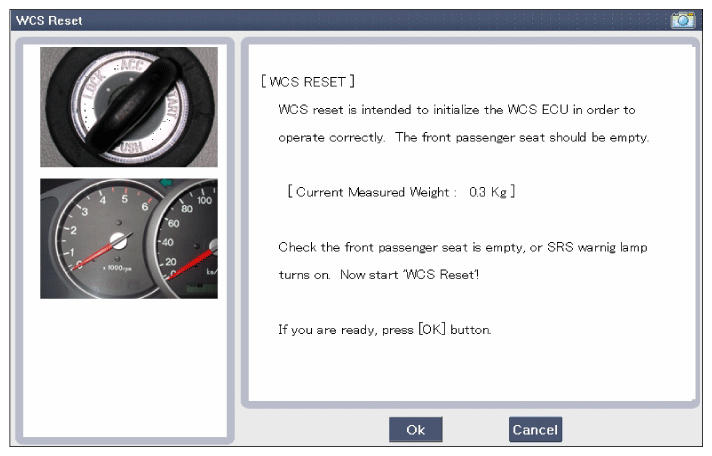

Fig 4: Scantool Display - Weight Classification System Reset 1
Courtesy of HYUNDAI MOTOR AMERICA

Specification: Approx. - 4.0 kg ~ + 4.0 kg
The 'WCS Reset' operation will take 3~10 second.
Make sure that there are no vibration or weight adding to the passenger front seat during the reset operation.

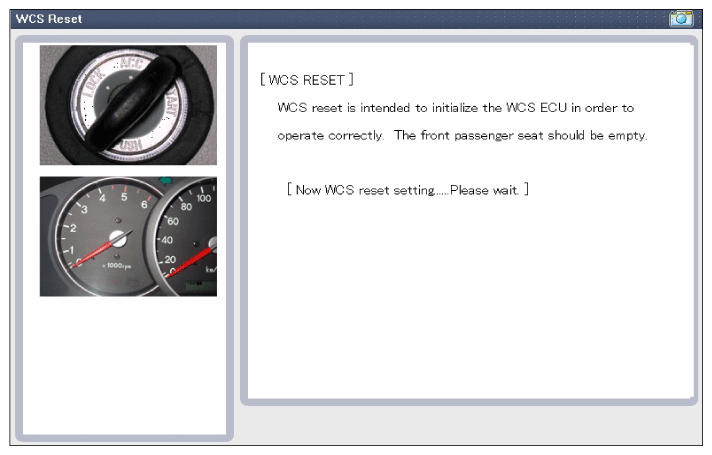

Fig 5: Scantool Display - Weight Classification System Reset 2
Courtesy of HYUNDAI MOTOR AMERICA

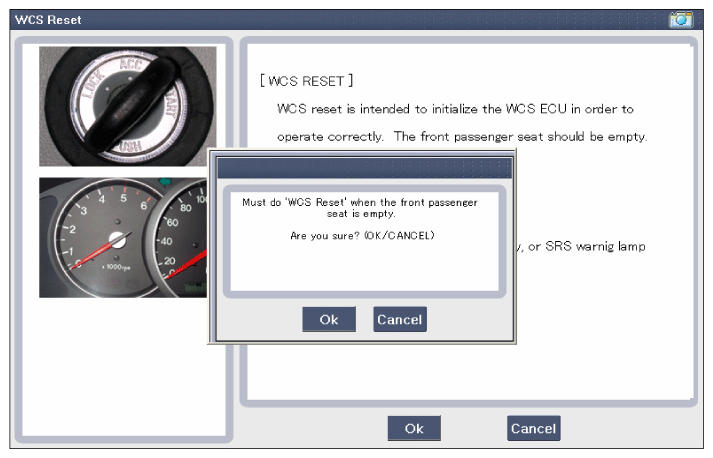

Fig 6: Scantool Display - Weight Classification System Reset 3
Courtesy of HYUNDAI MOTOR AMERICA

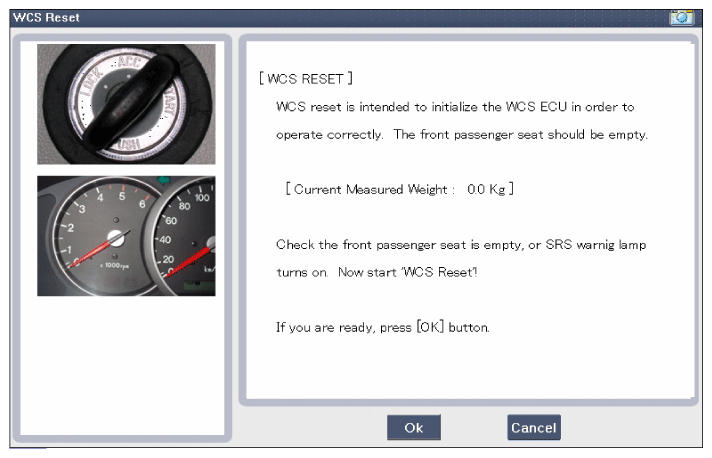

Fig 7: Scantool Display - Weight Classification System Reset 4
Courtesy of HYUNDAI MOTOR AMERICA

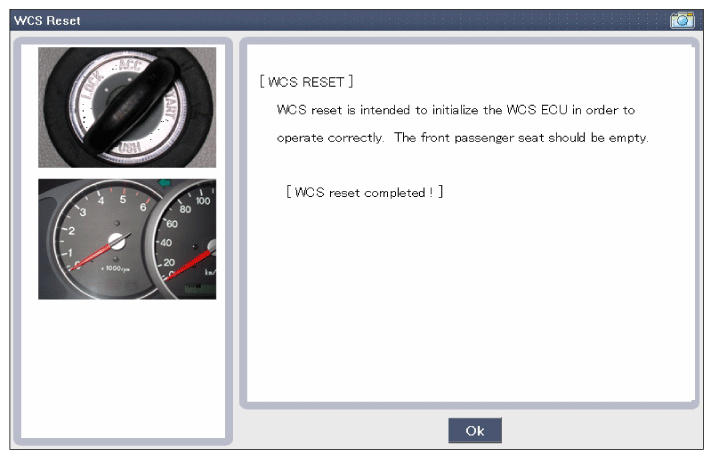

If the 'WCS Reset' operation is finished successfully, you will see the following screen.

Fig 8: Scantool Display - Normal Data Of WCS
Courtesy of HYUNDAI MOTOR AMERICA

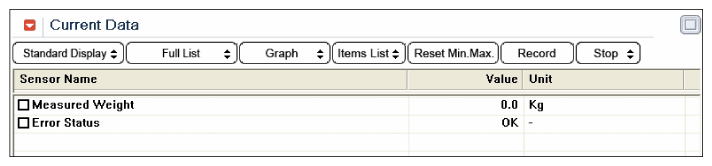

Fig 9: Scantool Display - Normal Current Data (Empty Data)
Courtesy of HYUNDAI MOTOR AMERICA

Specification: Approx. - 4.0 kg ~ + 4.0 kg
Is the displayed parameter the same as the above 9 figures?
YES
- WCS reset is performed correctly
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- WCS reset isn't performed correctly.
- Go to the applicable troubleshooting procedure.
