Power Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Check for an open or short circuit in the WCS Power Circuit.
- Disconnect WCS connector from wiring harness.
- Ignition "ON" & Engine "OFF".

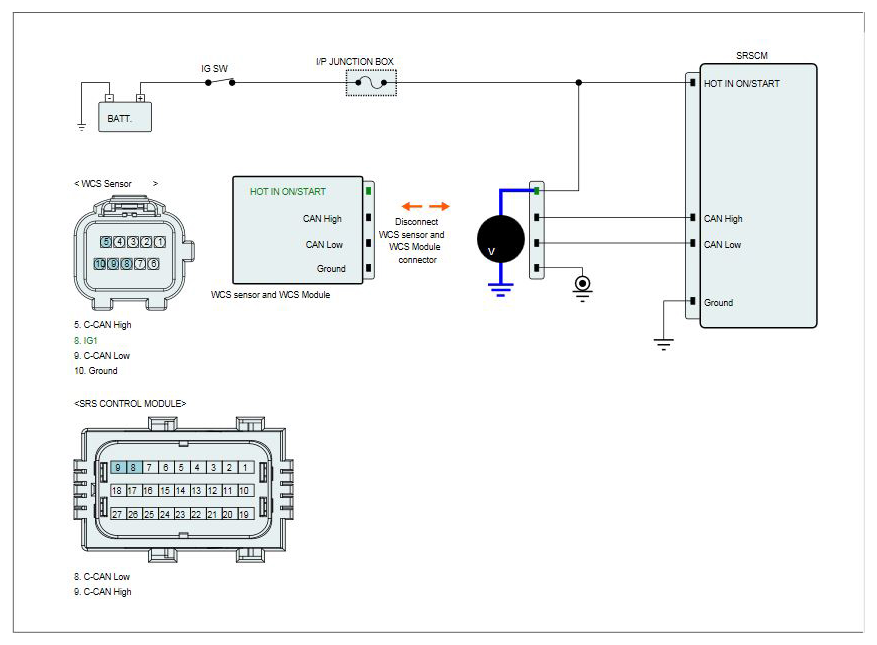

- Measure voltage between terminal "supply voltage" and chassis ground.
Specification: Battery Voltage
- Is the measured voltage within specifications?
YES
- Go to "CAN COMMUNICATION LINE INSPECTION " procedure.
NO
- Substitute the SRSCM main harness or WCS Module and check for proper operation.
If the problem is corrected, replace SRSCM main harness or WCS Module and then go to "VERIFICATION OF VEHICLE REPAIR " procedure and Go to "WCS RESET " procedure.
