Section 98 (Airbag System Diagnosis (HEV))
>>
DTC B1324: WCS (Weight Classification System) Communication Error
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

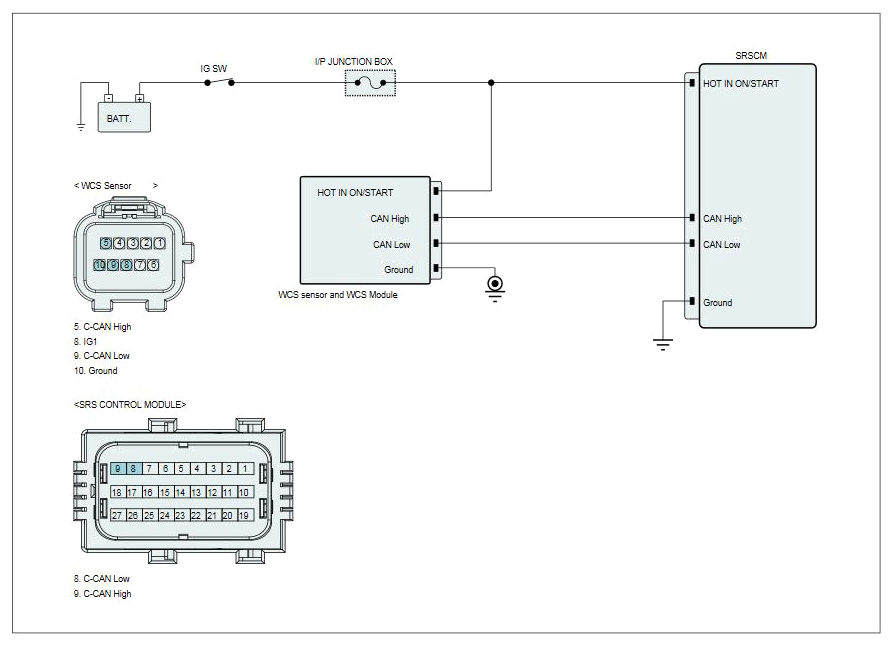

Fig 1: Weight Classification System Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
