Components and Components Location: Components: Notes

WARNING: This page is about a different variant/trim than selected.

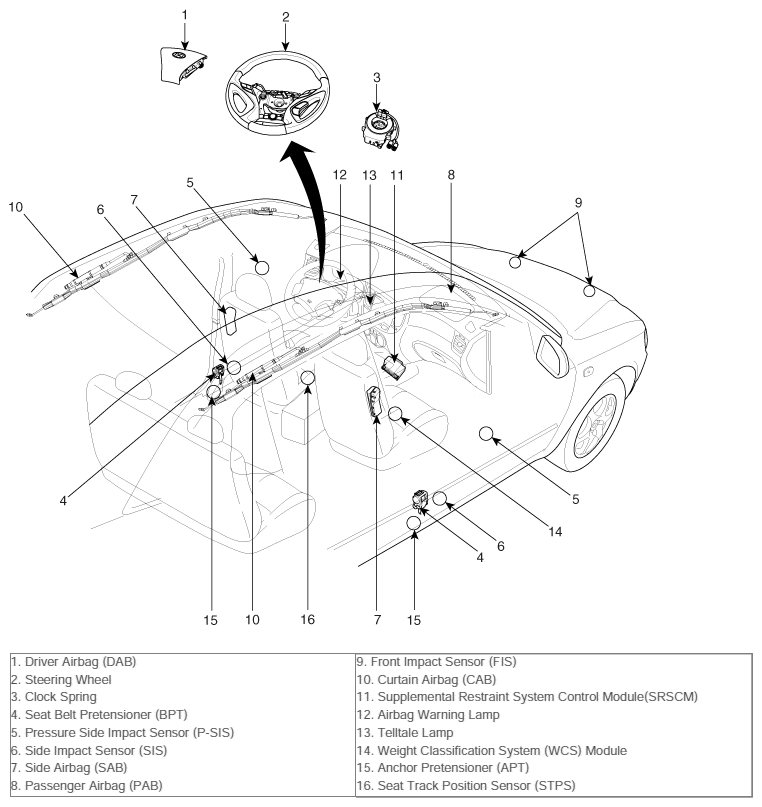

Fig 1: Identifying Restraint System Components
G10589167Courtesy of HYUNDAI MOTOR AMERICA
