WCS Reset

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF", connect scantool.
Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
You will view comments and current weight measured.
Make sure the measure weight is caused by occupant or tools or interference.
And then press "ENTER"

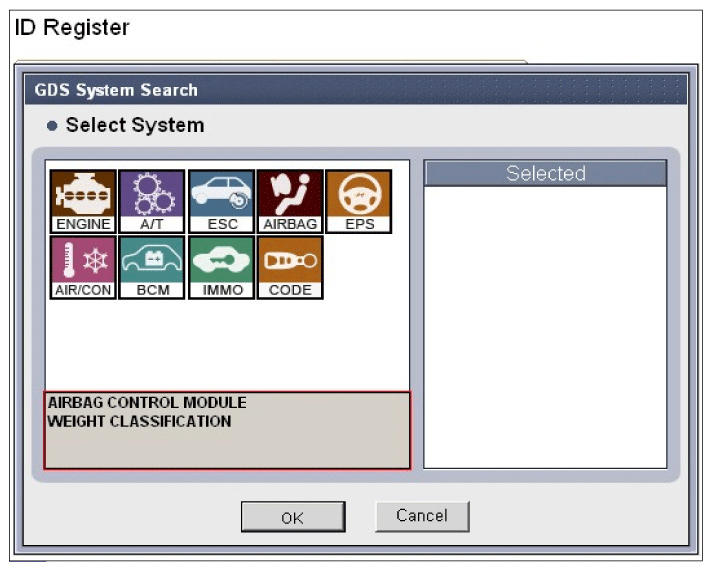

Fig 1: Screen Display - GDS System Reach
Courtesy of HYUNDAI MOTOR AMERICA

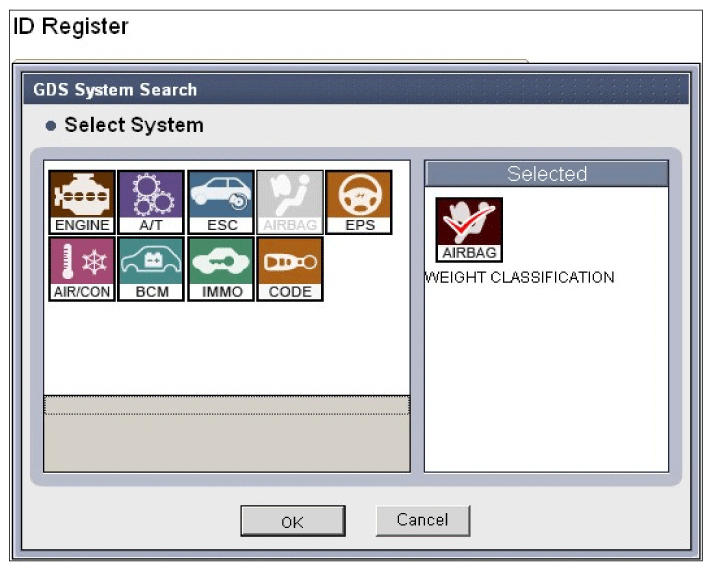

Fig 2: Screen Display - Weight Classification
Courtesy of HYUNDAI MOTOR AMERICA

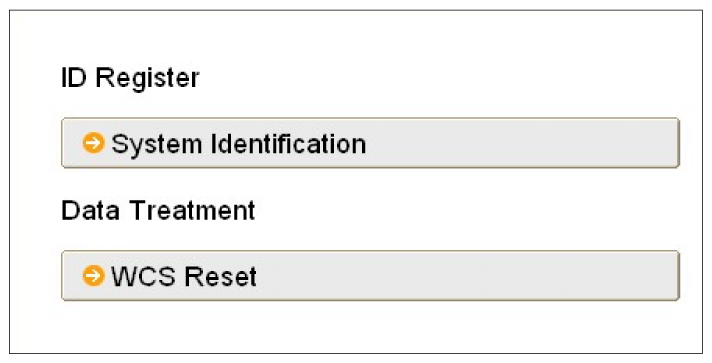

Fig 3: Screen Display - System Identification
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Screen Display - WCS Reset (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

Specification: Approx. - 4.0 kg ~ + 4.0 kg
The 'WCS Reset' operation will take 3~10 second.
Make sure that there should not be vibration or weight adding to the passenger front seat.

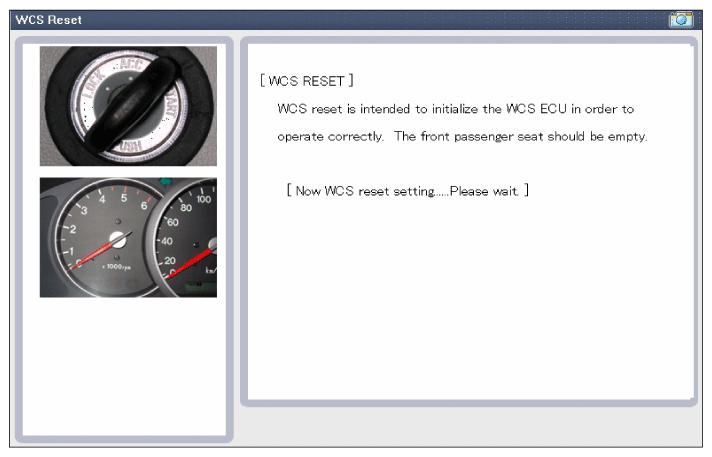

Fig 5: Screen Display - WCS Reset (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

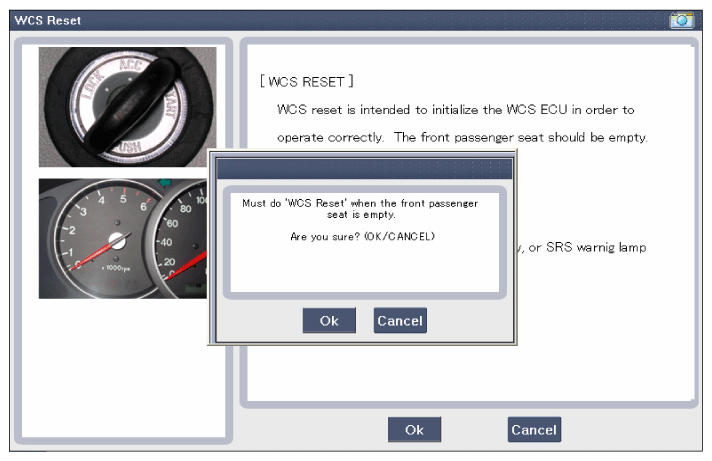

Fig 6: Screen Display - WCS Reset (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

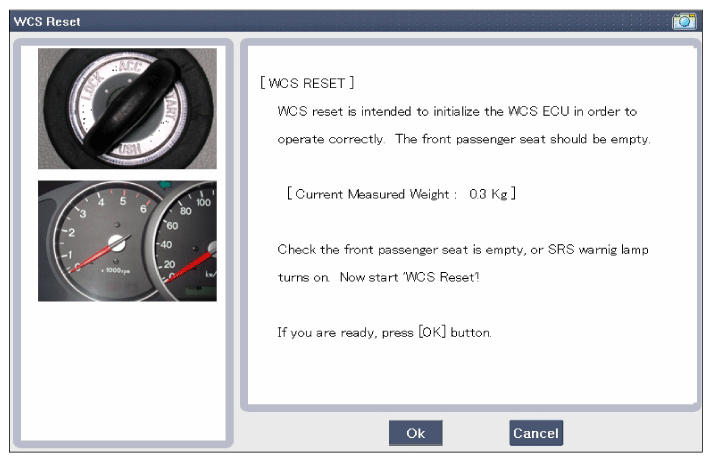

Fig 7: Screen Display - WCS Reset (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
If the 'WCS Reset' operation is finished successfully, you will view the following screen.

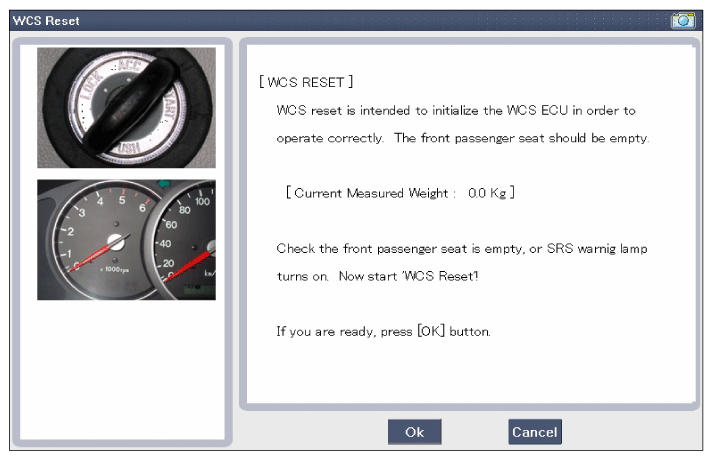

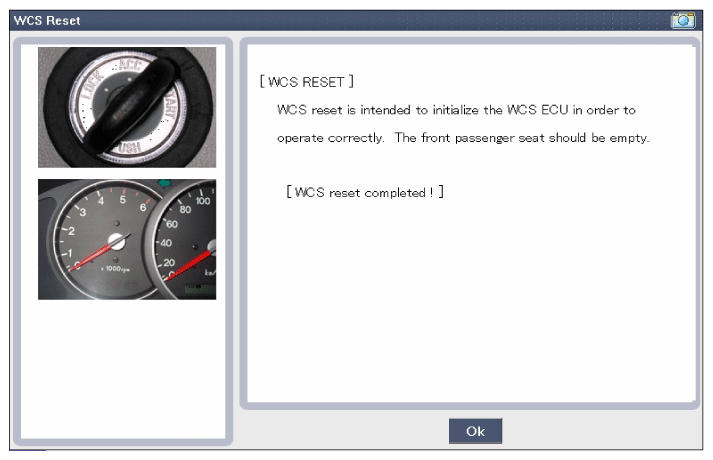

Fig 8: Screen Display - WCS Reset (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

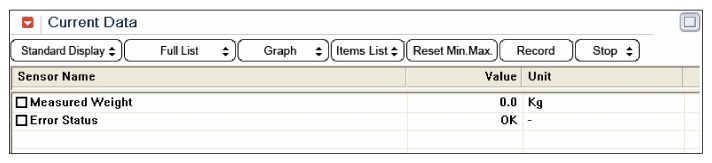

Fig 9: Screen Display - Current Data
Courtesy of HYUNDAI MOTOR AMERICA
Is the displayed parameter the same as the above 9 figure?
YES
- WCS reset is performed correctly
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- WCS reset isn't performed correctly.
- Go to the applicable troubleshooting procedure.
