Section 96 (Weight Classification System Diagnosis (HEV))
>>
DTC B1323: WCS Sensor Defect
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

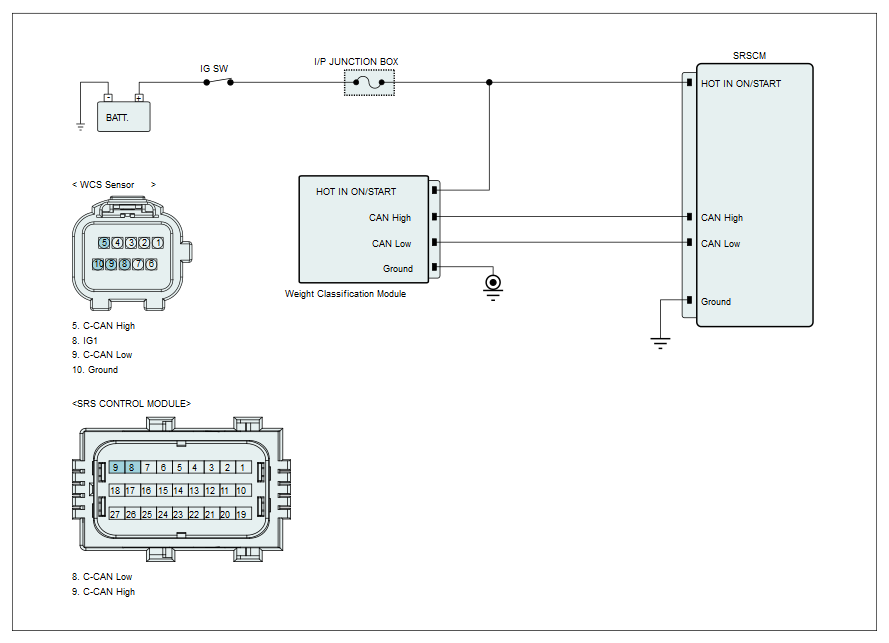

Fig 1: Weight Classification Module Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
