Refrigeration Cycle
Refrigeration Cycle
WARNING:
This page is about a different variant/trim than selected.

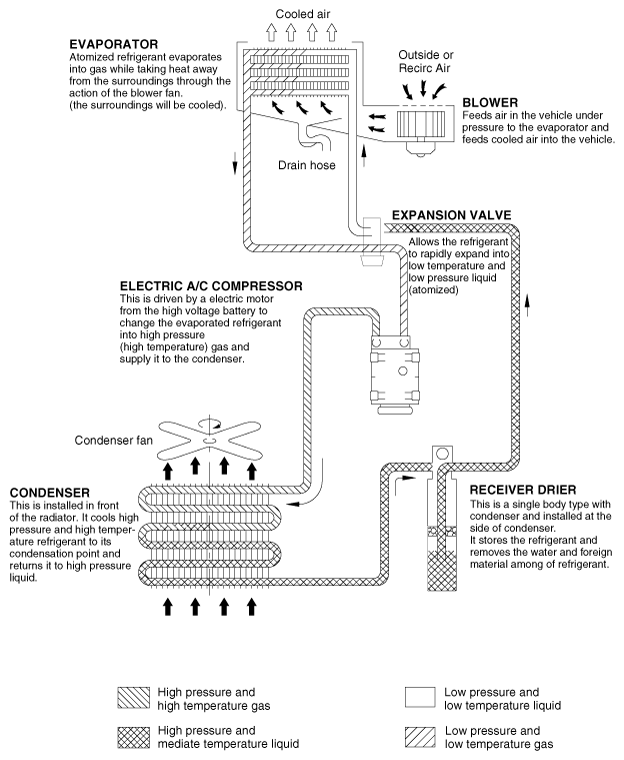

Fig 1: Refrigeration System Flow Diagram
Courtesy of HYUNDAI MOTOR AMERICA
