Section 94 (Air Conditioning System (HEV))
>>
Components and Components Location
>>
Component Location Index
>>
Engine Room
Engine Room
WARNING:
This page is about a different variant/trim than selected.

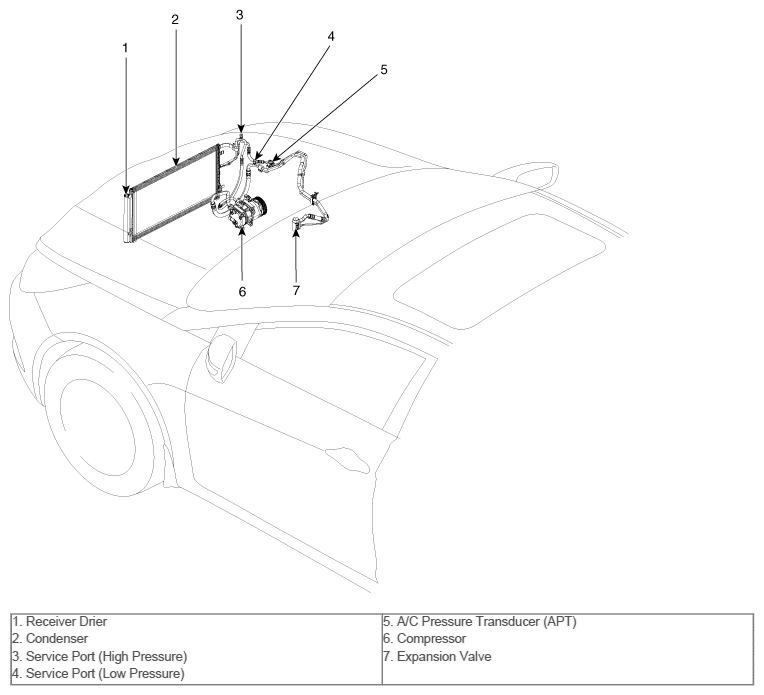

Fig 1: Identifying Air Conditioning Engine Room Components
Courtesy of HYUNDAI MOTOR AMERICA
