Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

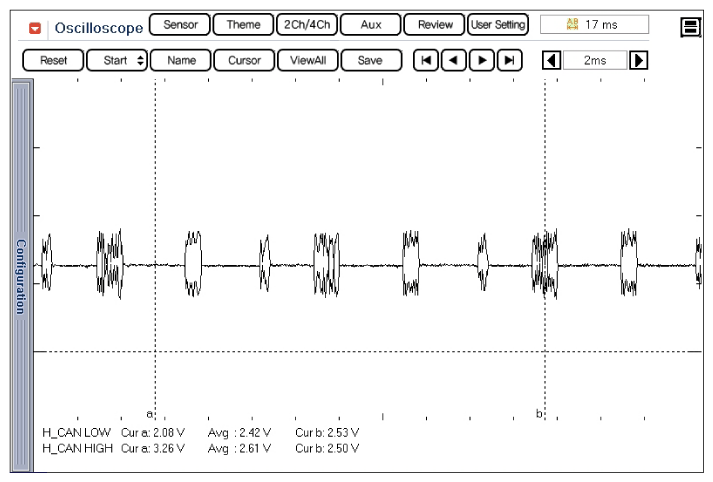

Fig 1: Screen Display - MCU ECU And IG ON Status, Communication Waveform 1 Of H-CAN Low & H-CAN High
G10602095Courtesy of HYUNDAI MOTOR AMERICA

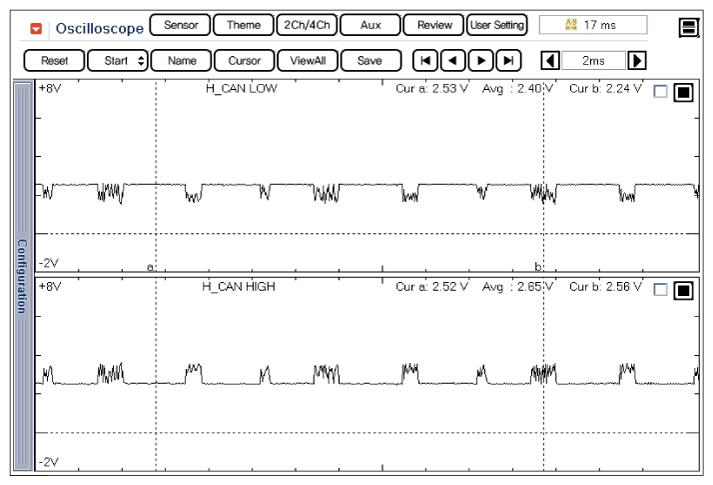

Fig 2: Screen Display - MCU ECU And IG ON Status, Communication Waveform 2 Of H-CAN Low & H-CAN High
G10602096Courtesy of HYUNDAI MOTOR AMERICA
