Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

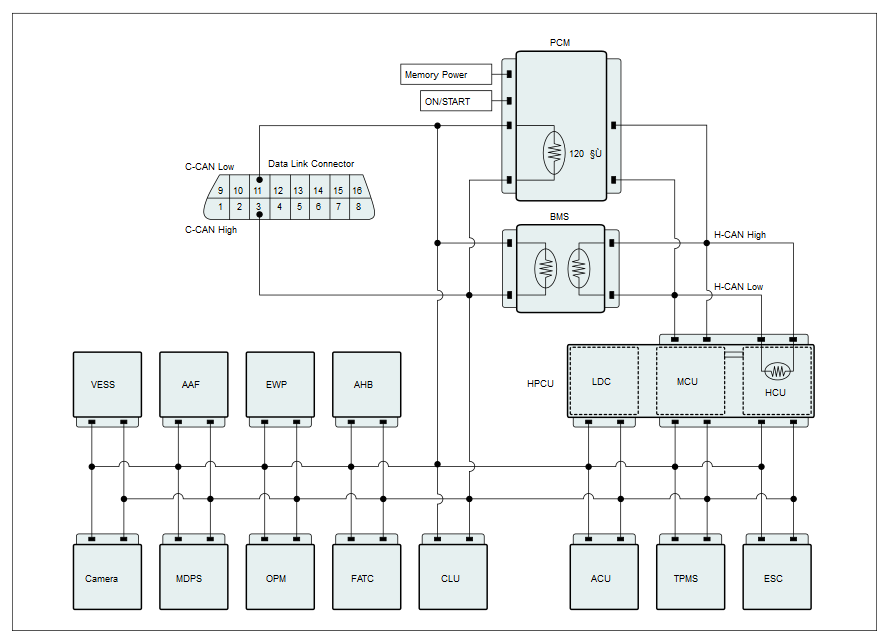

Fig 1: PCM - Circuit Diagram
G10602057Courtesy of HYUNDAI MOTOR AMERICA

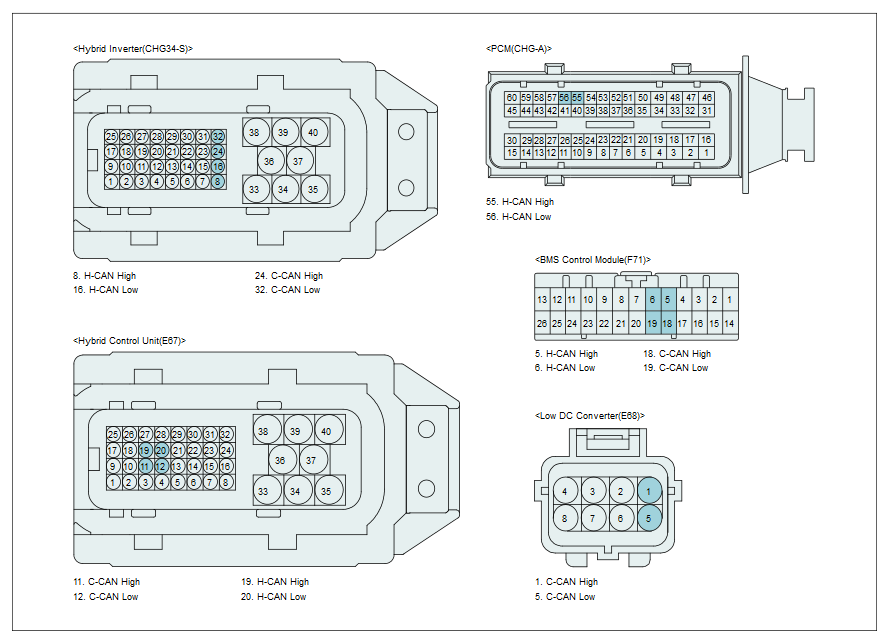

Fig 2: PCM Connector End View
G10602058Courtesy of HYUNDAI MOTOR AMERICA
