Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

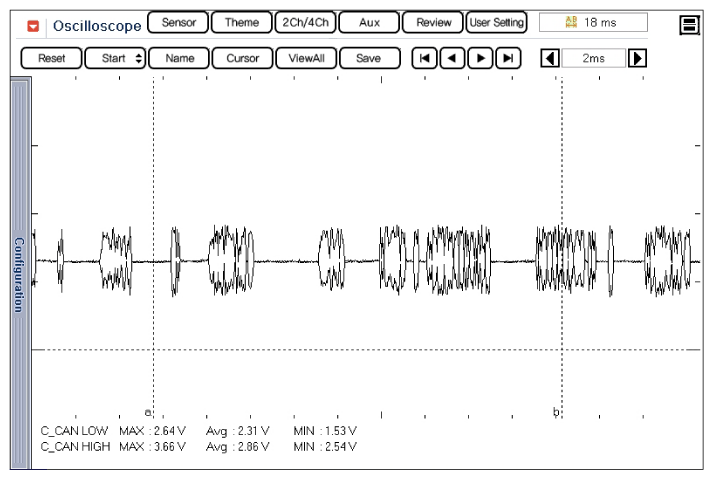

Fig 1: Screen Display - BMS ECU And IG ON Status, Communication Waveform 1 Of C-CAN Low & C-CAN High
G10602037Courtesy of HYUNDAI MOTOR AMERICA

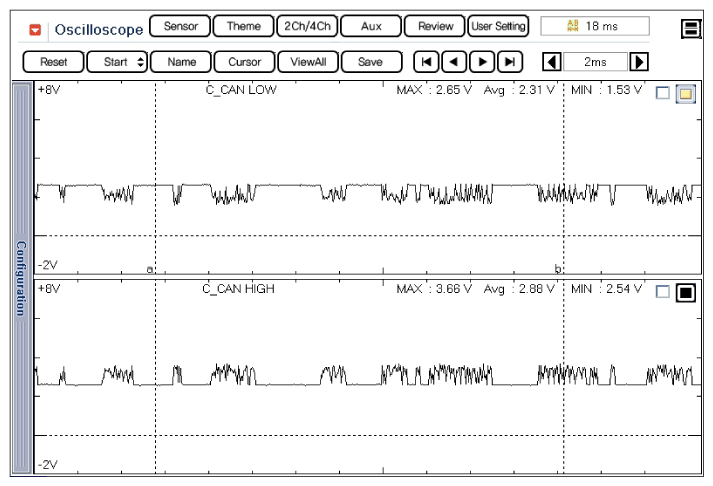

Fig 2: Screen Display - BMS ECU And IG ON Status, Communication Waveform 2 Of C-CAN Low & C-CAN High
G10602038Courtesy of HYUNDAI MOTOR AMERICA
