Section 93 (Battery Management System Diagnosis (HEV))
>>
DTC P1B03: Auxiliary Battery Temperature Sensor Circuit
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

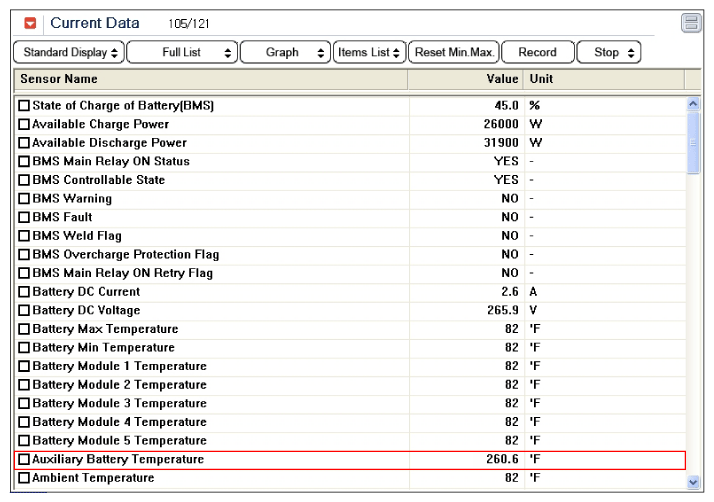

Fig 1: Screen Display - Current Data At EV Mode After Disconnecting Auxiliary Battery Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

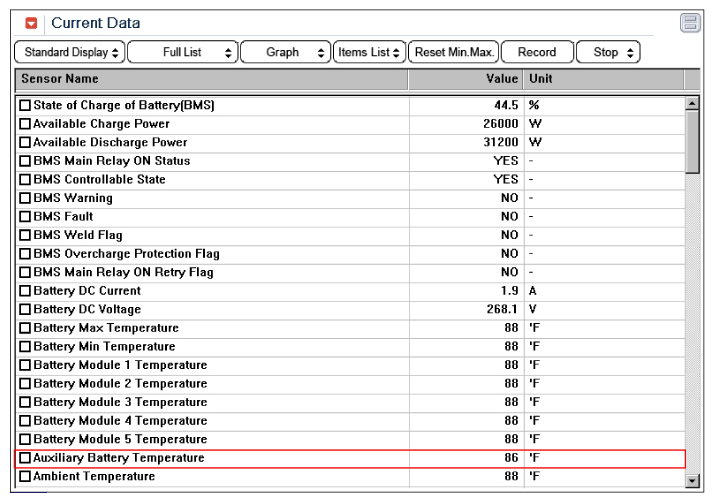

Fig 2: Screen Display - SOC 44.5% Of High Voltage Battery
Courtesy of HYUNDAI MOTOR AMERICA
