Monitor GDS Data

■ Info Code of Freeze frame data.

1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON"
3. Check the DTC, using GDS.
4. Select 'Freeze frame date' for "DTC"
5. Conform the freeze frame data and Info code.

   Separation	Info Code
   Save data when failure occurs	Info Code1 = Airbag H/wire duty
   	Info Code2 = Airbag CAN reception (Not received status: 0, Received status: 1)

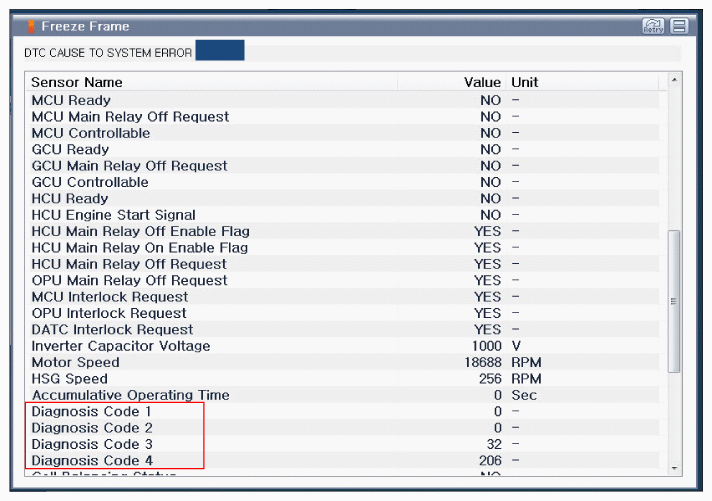

   Fig 1: Scantool Display - BMS Freeze Frame Data When Ignition ON

   Courtesy of HYUNDAI MOTOR AMERICA
6. Is parameter within specifications?

   YES

   • Fault is intermittent caused by poor contact in the part's and/or BMS connector or was repaired and BMS memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

   NO

   • Go to "Wiring Inspection " procedue.
