Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

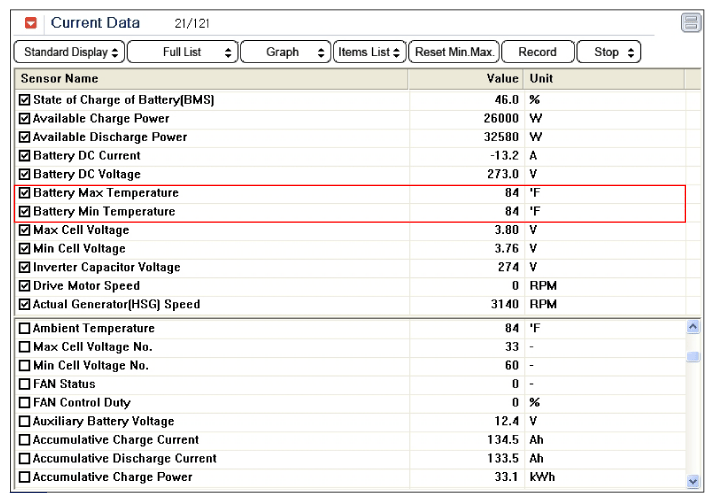

Fig 1: Screen Display - SOC 46% Of High Voltage Battery MAX Temperature 84°F

Courtesy of HYUNDAI MOTOR AMERICA

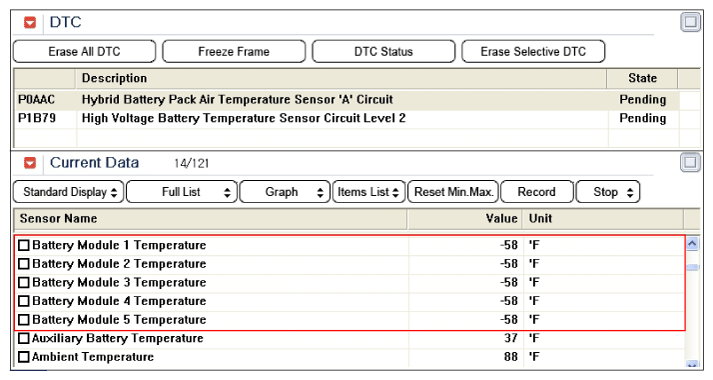

Fig 2: Screen Display - SOC 45.5% Of High Voltage Battery Temperature Sensors 58°F

Courtesy of HYUNDAI MOTOR AMERICA

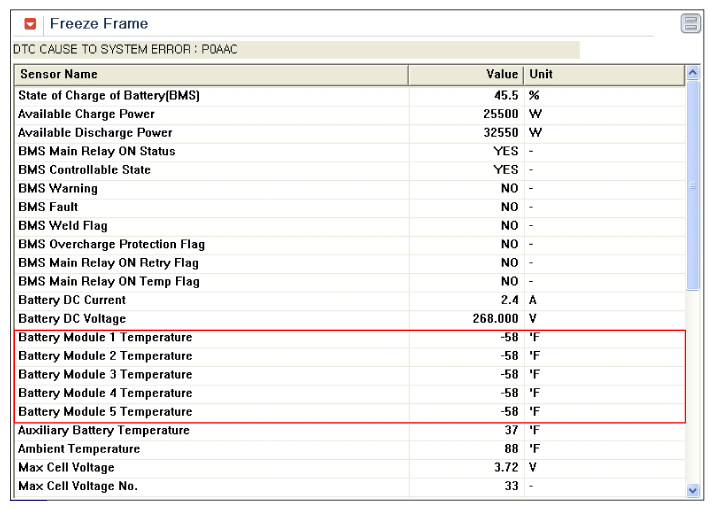

Fig 3: Screen Display - DTC And Current Data Shows Temperature 58°F

Courtesy of HYUNDAI MOTOR AMERICA

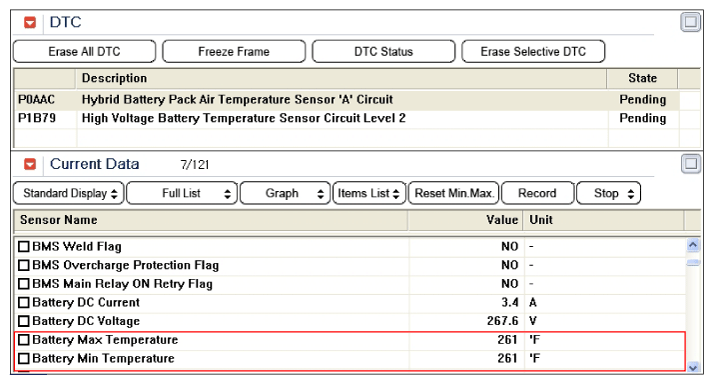

Fig 4: Screen Display - DTC And Current Data Shows Temperature MAX & MIN - 261°F

Courtesy of HYUNDAI MOTOR AMERICA
