Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

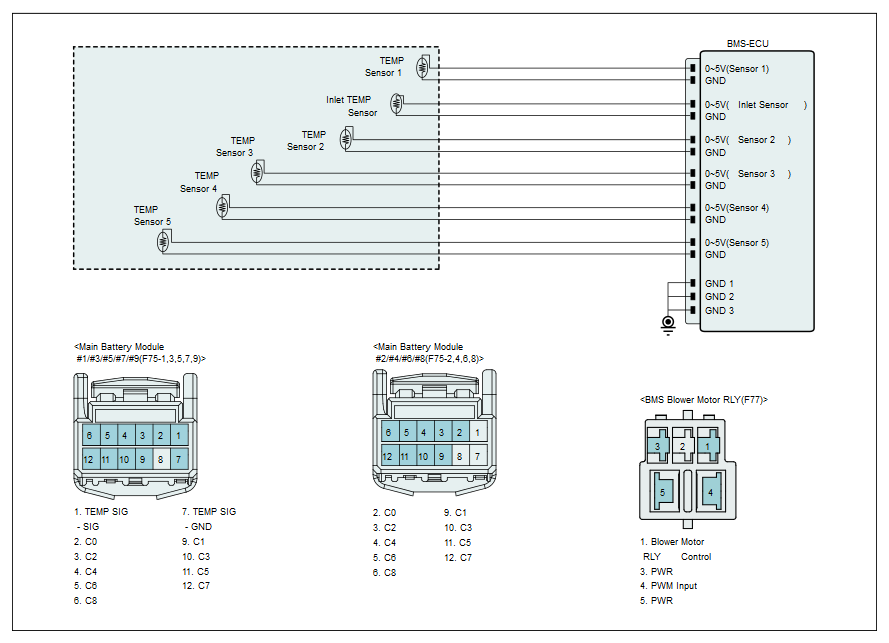

Fig 1: BMS ECU - Circuit Diagram (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

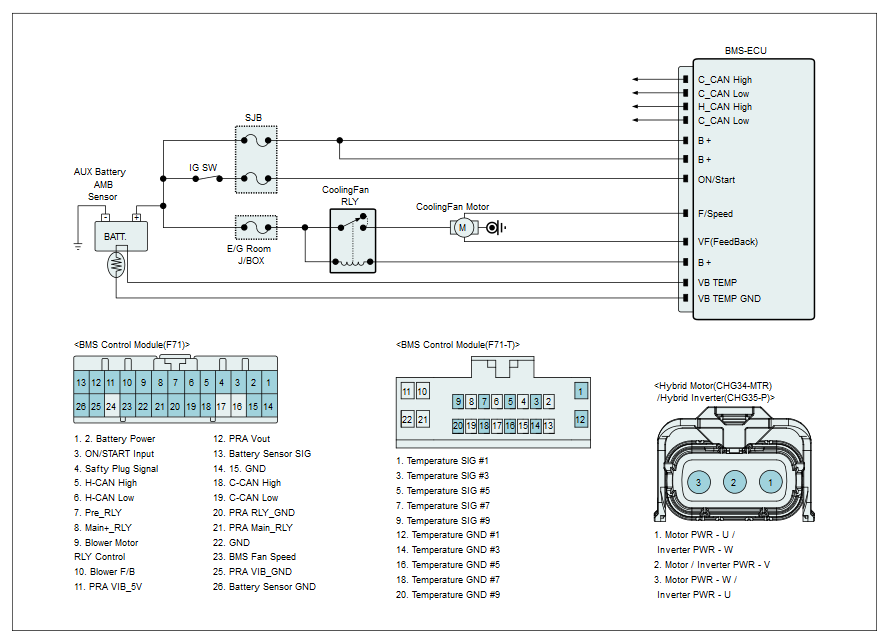

Fig 2: BMS ECU - Circuit Diagram (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

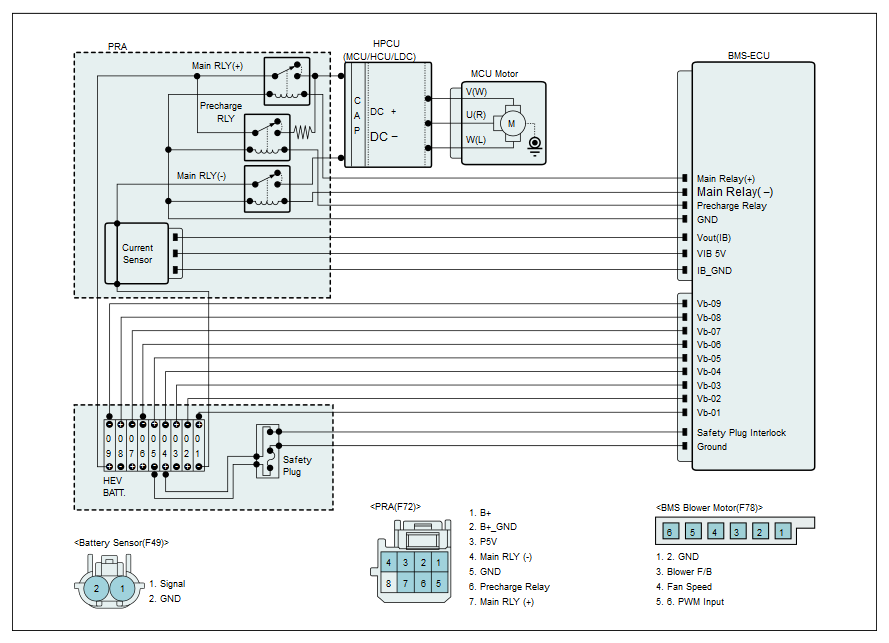

Fig 3: BMS ECU - Circuit Diagram (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

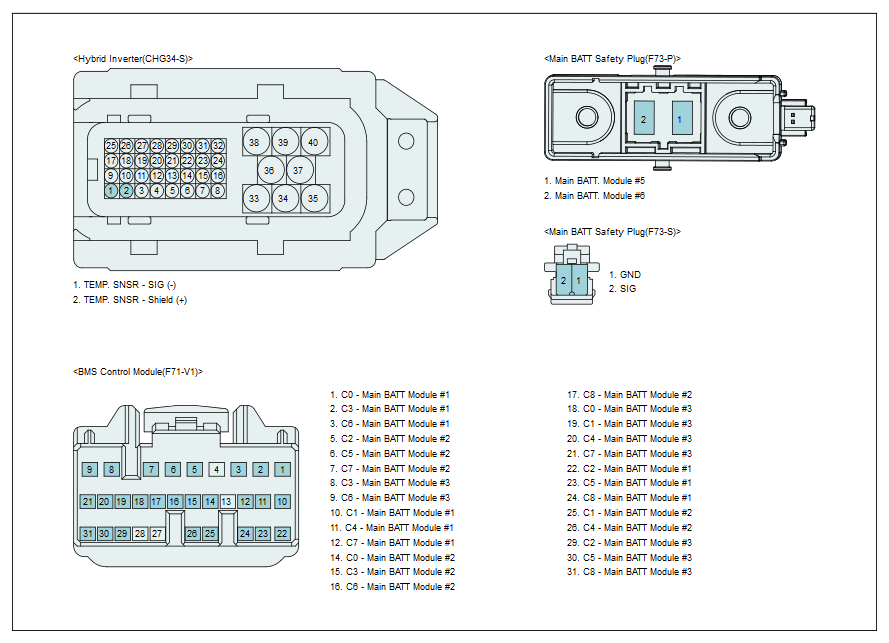

Fig 4: BMS ECU Connector End View (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

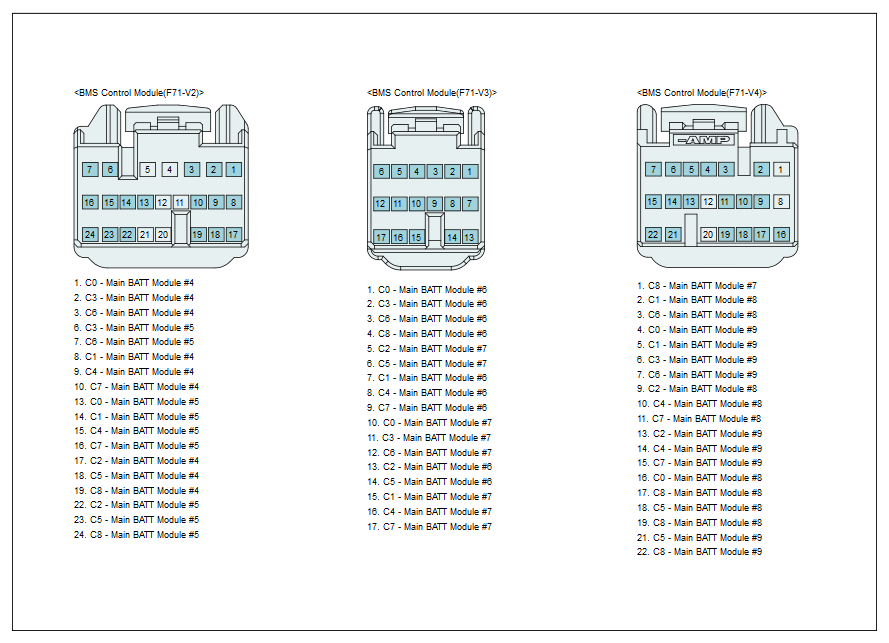

Fig 5: BMS ECU Connector End View (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
