Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

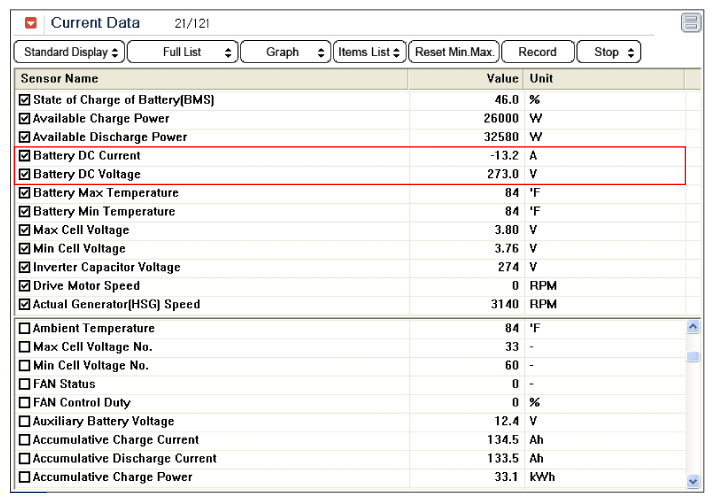

Fig 1: Screen Display - SOC 46% Of High Voltage Battery - EV Mode Status

Courtesy of HYUNDAI MOTOR AMERICA

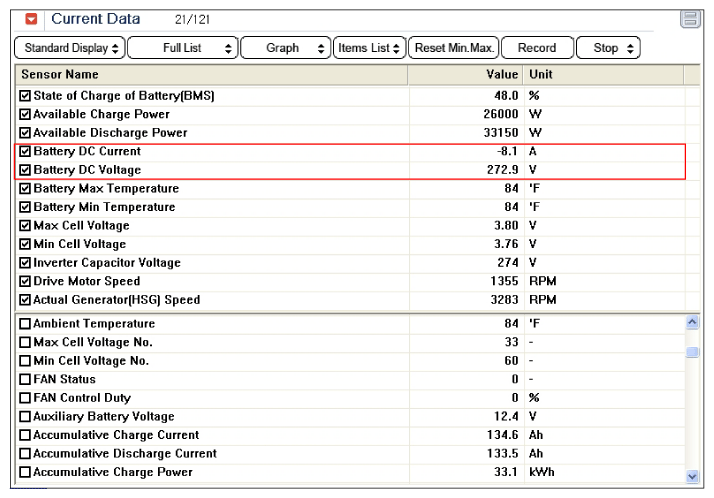

Fig 2: Screen Display - SOC 48% Of High Voltage Battery - Driving EV Mode Status

Courtesy of HYUNDAI MOTOR AMERICA

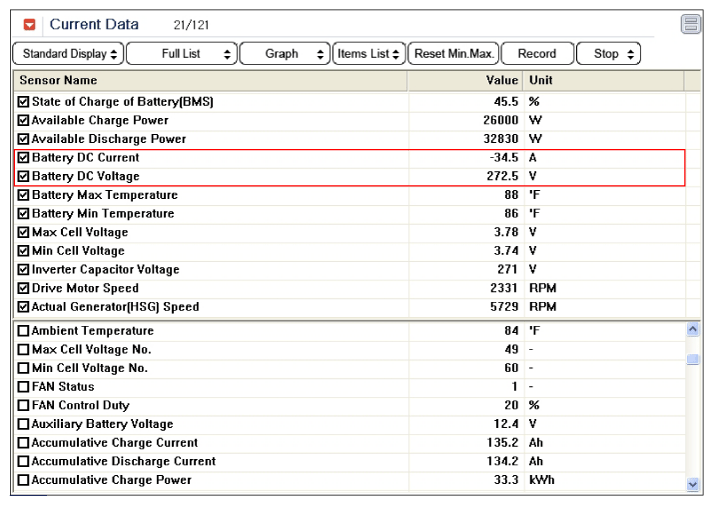

Fig 3: Screen Display - SOC 45.5% Of High Voltage Battery - Acceleration EV Mode

Courtesy of HYUNDAI MOTOR AMERICA

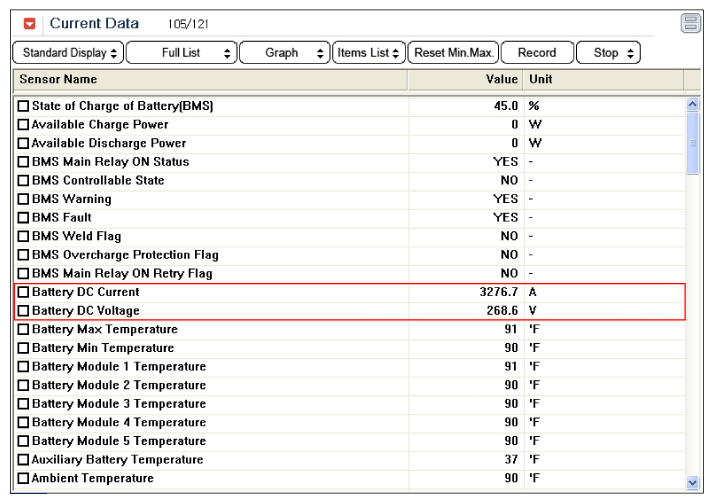

Fig 4: Screen Display - SOC 45.% Of High Voltage Battery, Current Data - Current Sensor Opened

Courtesy of HYUNDAI MOTOR AMERICA

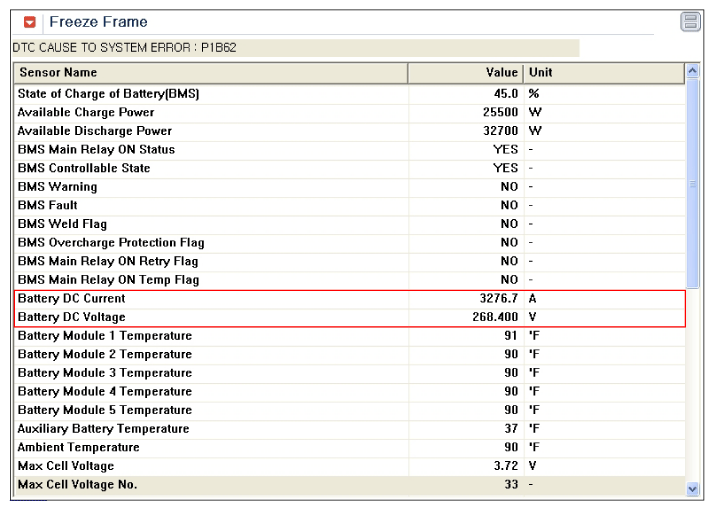

Fig 5: Screen Display - SOC 45.% Of High Voltage Battery, Freeze Frame Data - Current Sensor Opened

Courtesy of HYUNDAI MOTOR AMERICA

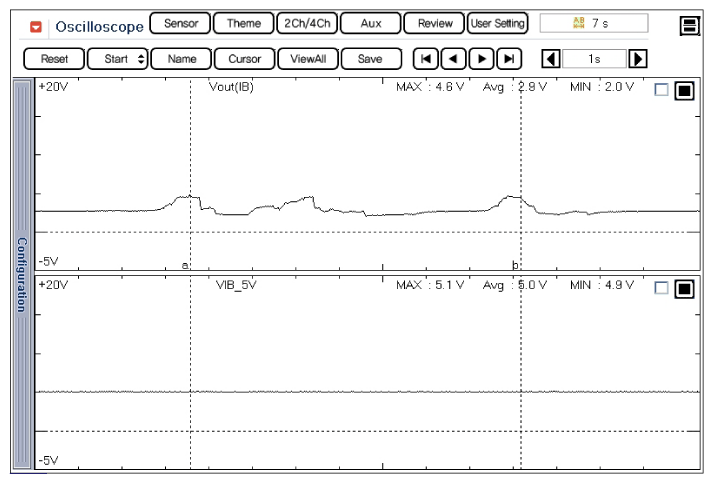

Fig 6: Screen Display - After Engine Starting And Accelerating, Power Of Current Sensor And During Changing Current Waveform

Courtesy of HYUNDAI MOTOR AMERICA
