Section 93 (Battery Management System Diagnosis (HEV))
>>
DTC P0AAE: Hybrid Battery Pack Air Temperature Sensor 'A' Circuit Low
>>
General Information
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

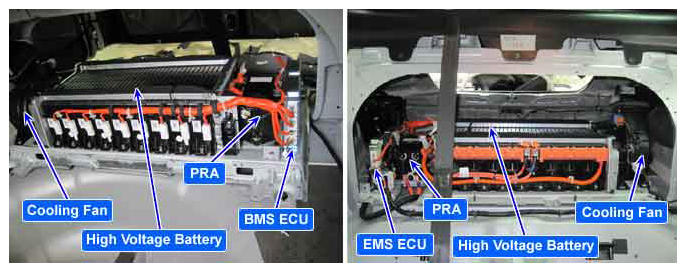

Fig 1: High Voltage Battery System Components Location
Courtesy of HYUNDAI MOTOR AMERICA
