Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

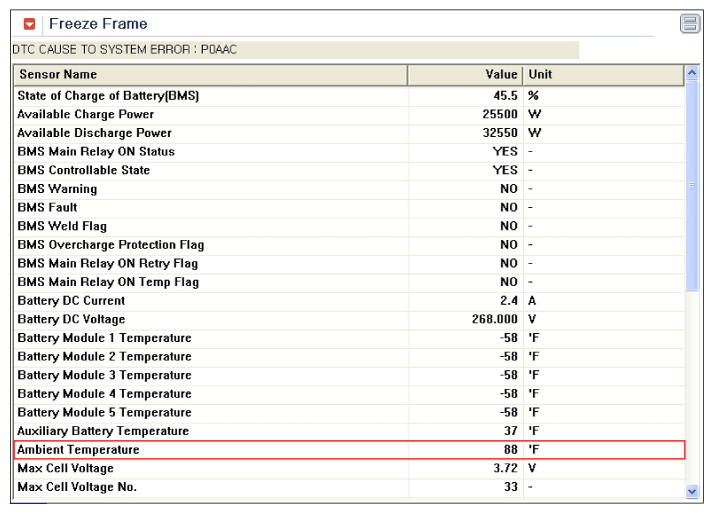

Fig 1: Screen Display - SOC 45.5% Of High Voltage Battery Freeze Frame Shows That Ambient Temperature 88°F At EV Mode

Courtesy of HYUNDAI MOTOR AMERICA

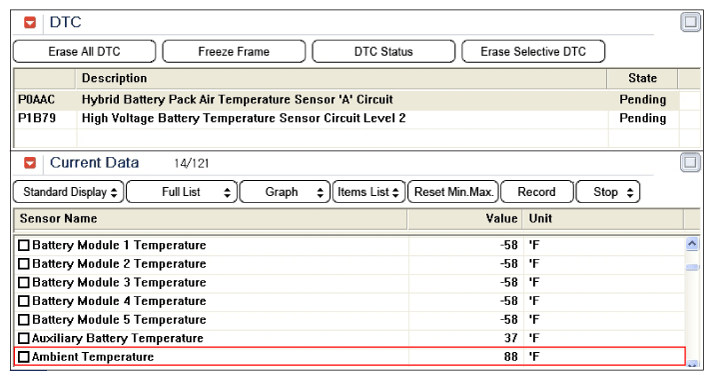

Fig 2: Screen Display - DTC And Current Data At EV Mode After Disconnecting Temperature Sensor Connector Ambient Temperature 88°F

Courtesy of HYUNDAI MOTOR AMERICA

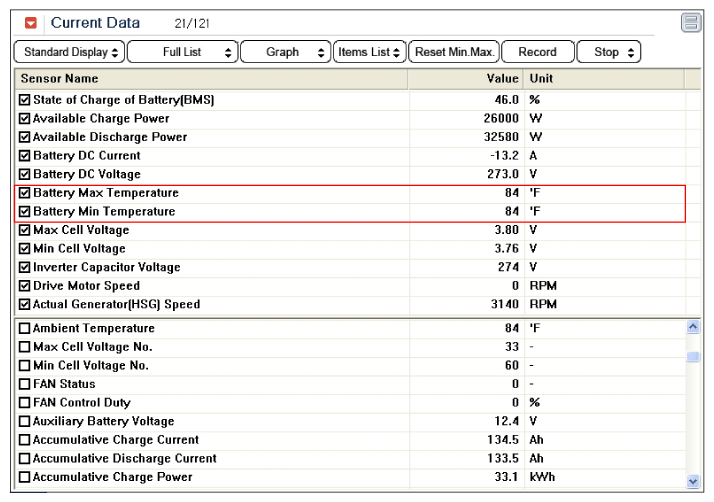

Fig 3: Screen Display - SOC 46% Of High Voltage Battery MAX And MIN Temperature 84°F At EV Mode

Courtesy of HYUNDAI MOTOR AMERICA
